Similar to a standard bar chart, a circular bar chart shows trends over time and compares data points. This topic describes how to add data to a circular bar chart and configure its style.
Prerequisites
The dashboard has been created. For more information, see Create a Dashboard.
Chart Overview
Scenarios
The visualization is simple and intuitive: the length of each bar represents its value, making it easy to compare differences and trends across data groups.
Key Benefits
Calculation: You can configure year-over-year, month-over-month, or cumulative calculations with a single click.
Visualization: You can display labels, legends, and custom backgrounds.
Example Visualization
Limits
A circular bar chart has two axes: a value axis (measure) and a category axis (dimension).
The category axis uses one dimension, such as Province or Product Type.
The value axis uses one measure, such as Order Amount or Profit.
Chart Field Configuration
On the Fields tab, select the required dimension and measure fields:
In the Dimensions list, find Region. Double-click it or drag it to the Category Axis (Dimension) area.
In the Measures list, find Order Amount. Double-click it or drag it to the Value Axis (Measure) area.
Click Update. The system updates the chart automatically.
To view data for a specific Region, you can apply a filter to display only the data that you need.
Auto-refresh
You can enable this option to automatically refresh the chart data. For example, if you enable auto-refresh and set the interval to 5 minutes, the chart is updated every 5 minutes.
Chart Style Configuration
This section describes how to configure chart styles. For more information about common chart style settings, such as the chart title, see Configure the Chart Title.
You can use the Search box at the top of the configuration panel to quickly find and configure configuration items. You can also click the
icon on the right to expand or collapse all categories.
Drawing Area
In the Drawing Area section, you can set the color scheme for the circular bar chart.
Axes
In the Axes section, you can choose whether to show axis labels and set the label text style.

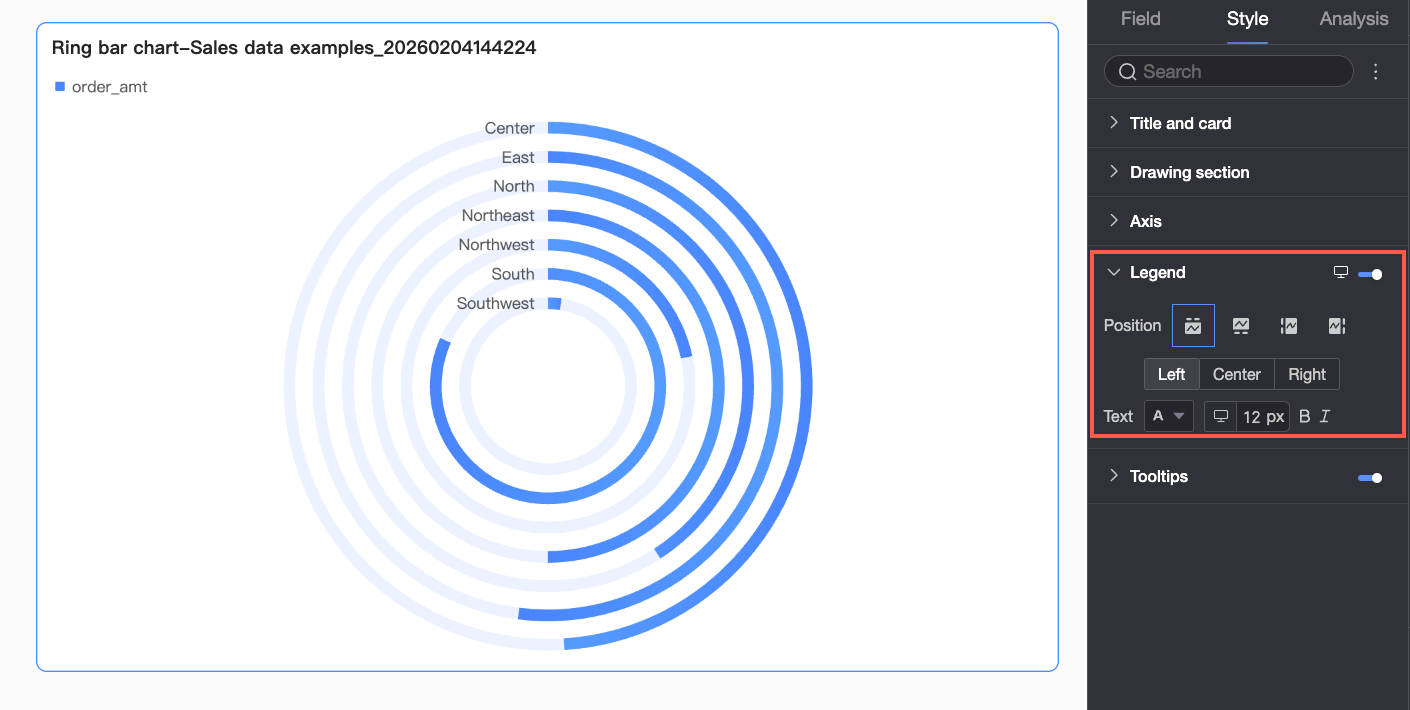

Legend
In the Legend section, you can click the
icon to enable the legend and set its style.
Chart Configuration Item | Description |
Position | Set where to display the legend and its alignment.
|
Text | Set the legend text style. You can change font color, size, weight, and slant. |
Mobile Legend | Legend settings for PC and mobile are independent. Use the PC/Mobile toggle button ( |
) at the top of the dashboard editor to switch to mobile editing mode. Then customize the legend position and text style for mobile devices.
Tooltip
In the Tooltip section, you can click the icon to enable tooltips and set their style.
Chart Configuration Item | Description |
Background Color | Set the background fill color for the tooltip. |
Text | Set the tooltip text style. You can change font color, size, weight, and slant. |

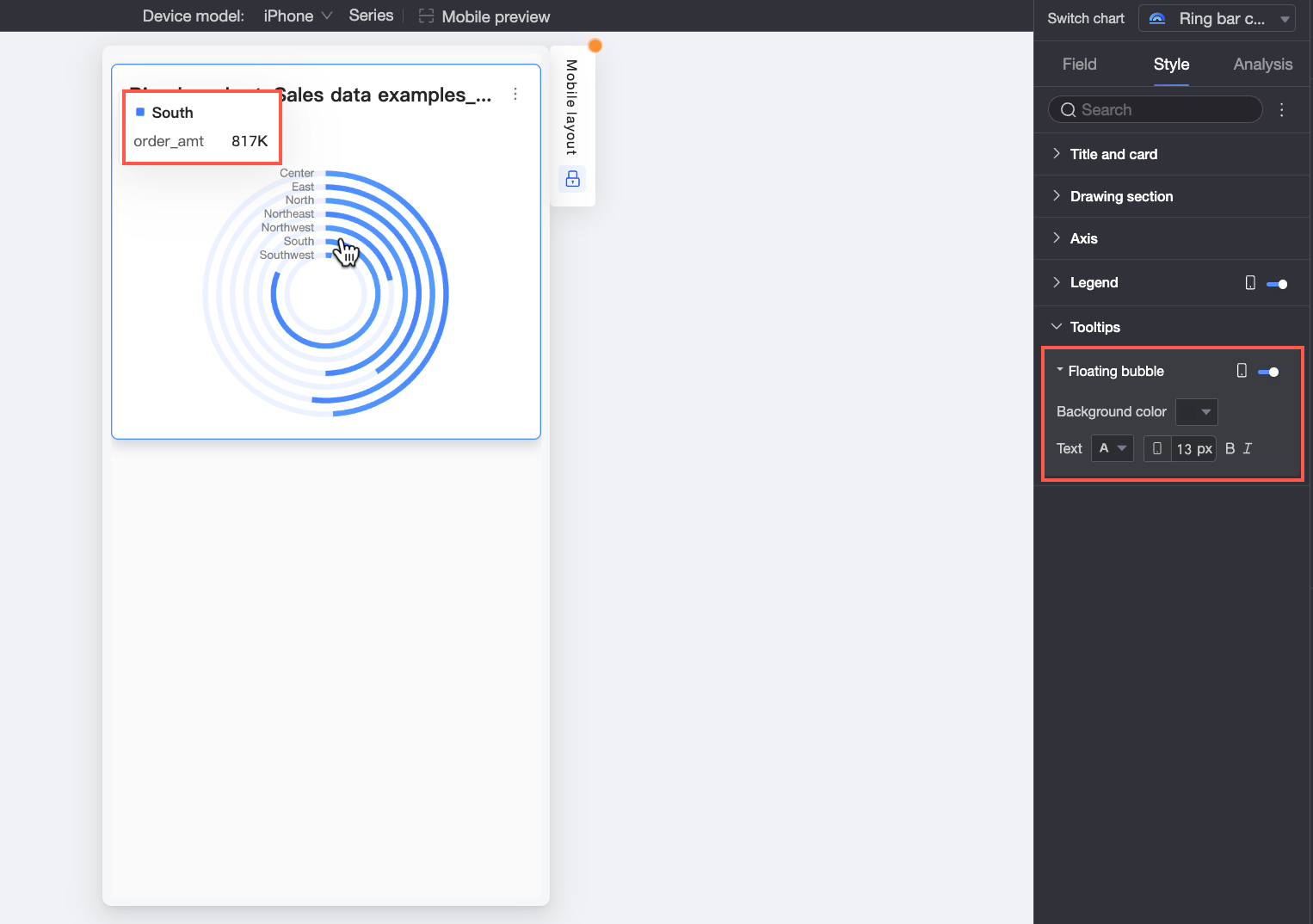

Mobile Tooltip | The tooltip settings for the PC and mobile views are independent. You can click the PC/Mobile switch button ( |
Chart Analysis Configuration
Configuration Item | Name | Description |
Data Interaction | Drilling | After you set drill-down fields in the Fields panel, configure how drill-down levels appear here. |
Filter Interaction | When your analysis data spans multiple charts, use filter interaction to link them for coordinated analysis. For more information, see Filter Interaction. | |
Navigation | When your analysis data spans multiple dashboards, use dashboard navigation to link them. Navigation supports parameter-based navigation and external links. |
What to do next
You can share the dashboard with others. For more information, see Share a Dashboard.
For complex, topic-focused analysis with a navigation menu, you can integrate your dashboard into a BI portal. For more information, see Create a PC BI Portal.
