Container Service for Kubernetes:アノテーションを使用したNLBインスタンスの設定

インターネット向けNLBインスタンスの作成

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

内部向けNLBインスタンスの作成

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-address-type

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-address-type: "intranet"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

NLBインスタンスの名前を指定する

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-name

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-name: "${your-nlb-name}" # The name of the NLB instance.
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

NLBインスタンスが属するリソースグループの指定

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-resource-group-id

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-resource-group-id:  "${your-resource-group-id}" # The ID of the resource group.
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

デュアルスタックNLBインスタンスの作成

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-ip-version

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-ip-version: "DualStack"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  sessionAffinity: None
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

NLBインスタンスにタグを追加する

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-additional-resource-tags

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-additional-resource-tags: "Key1=Value1,Key2=Value2"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  sessionAffinity: None
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

既存のNLBインスタンスの使用

以下の注釈が使用される。

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-id: "${your-nlb-id}" # The ID of the existing NLB instance that you want to use.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-force-override-listeners: "true"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  sessionAffinity: None
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

EIP帯域幅プランをNLBインスタンスに関連付ける

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-bandwidth-package-id

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-bandwidth-package-id: "cbwp-xxxxxxxxxx"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  sessionAffinity: None
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

NLBインスタンスの削除保護を有効にする

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-modification-protection

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-delete-protection: "on"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  sessionAffinity: None
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

NLBインスタンスの設定読み取り専用モードを有効にする

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-modification-protection

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-modification-protection: "ConsoleProtection"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  sessionAffinity: None
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

IPv6 NLBインスタンスのネットワークタイプの指定

以下の注釈が使用される。

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-ip-version: "DualStack"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-ipv6-address-type: internet # Specify a public IPv6 address.
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  sessionAffinity: None
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

サービスを削除すると自動的に作成されたSLBインスタンスを保持する

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-preserve-lb-on-delete

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-preserve-lb-on-delete: "true"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

リスナーのセキュリティグループの構成

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-security-group-ids

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-security-group-ids: "sg-aaaaa,sg-bbbbb" # Separate multiple security group IDs with commas (,).
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

リスナーにTCPとUDPの両方を設定

apiVersion: v1
kind: Service
metadata:
  annotations:
      service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: udp
    port: 80
    protocol: UDP
    targetPort: 81
  selector:
    app: nginx
  sessionAffinity: None
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

TCPリスナーの作成

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  sessionAffinity: None
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

UDPリスナーの作成

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: udp
    port: 80
    protocol: UDP
    targetPort: 80
  selector:
    app: nginx
  sessionAffinity: None
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

TCP/SSLリスナーの作成

以下の注釈が使用される。

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-protocol-port: "tcpssl:443"
    # If the certificate is deployed in a region in the Chinese mainland, the SSL certificate ID appended with region information is ${your-cert-id}-cn-hangzhou.
    # If the certificate is deployed in a region outside the Chinese mainland, the SSL certificate ID appended with region information is ${your-cert-id}-ap-southeast-1.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-cert-id: "${The appended certificate ID}"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

相互認証の有効化

以下の注釈が使用される。

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-protocol-port: "tcpssl:443"

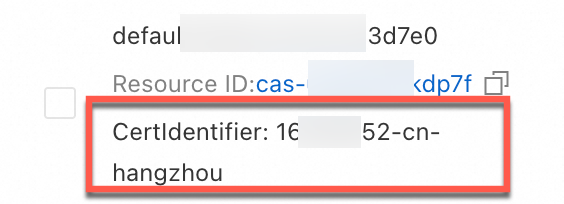

    # If the cluster is deployed in a region in the Chinese mainland, the SSL certificate ID appended with region information is ${your-cert-id}-cn-hangzhou.
    # If the cluster is deployed in a region outside the Chinese mainland, the SSL certificate ID appended with region information is ${your-cert-id}-ap-southeast-1.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-cert-id: "${The appended certificate ID}"

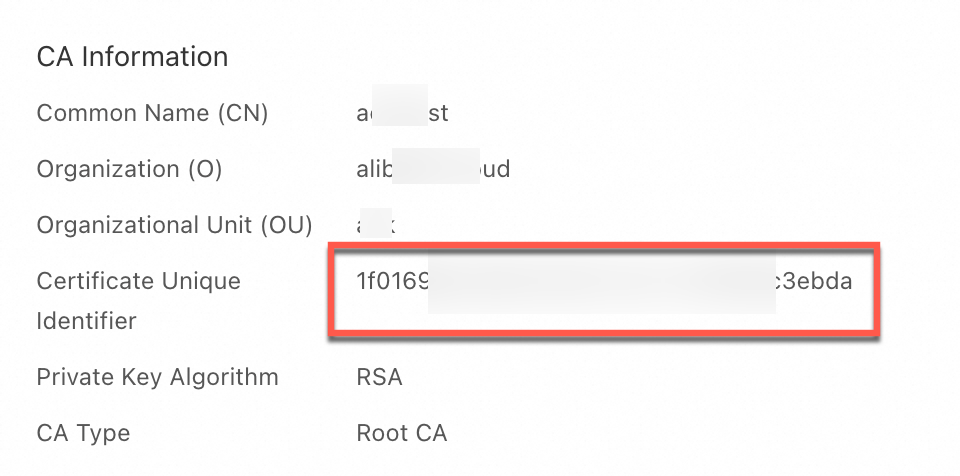

    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-cacert-id: "${your-cacert-id}"  # The CA certificate ID.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-cacert: "on"
name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

TLSセキュリティポリシーの設定

以下の注釈が使用される。

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-protocol-port: "tcpssl:443"
    # If the cluster is deployed in a region in the Chinese mainland, the SSL certificate ID appended with region information is ${your-cert-id}-cn-hangzhou.
    # If the cluster is deployed in a region outside the Chinese mainland, the SSL certificate ID appended with region information is ${your-cert-id}-ap-southeast-1.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-cert-id: "${The appended certificate ID}"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-tls-cipher-policy: "tls_cipher_policy_1_0"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

プロキシプロトコルの設定

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-proxy-protocol

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-proxy-protocol: "on"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

追加情報を含むプロキシプロトコルの設定

以下の注釈が使用される。

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-proxy-protocol: "on"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-ppv2-pvl-ep-id-enabled: "on"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-ppv2-pvl-eps-id-enabled: "on"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-ppv2-pvl-vpc-id-enabled: "on"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

1秒あたりに作成できる最大接続数を指定します。

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-cps

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-cps: "100"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

リスナーのアイドル接続のタイムアウト期間を指定する

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-idle-timeout

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-idle-timeout: "60"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

ALPNポリシーの設定

以下の注釈が使用される。

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-protocol-port: "tcpssl:443"
    # If the cluster is deployed in a region in the Chinese mainland, the SSL certificate ID appended with region information is ${your-cert-id}-cn-hangzhou.
    # If the cluster is deployed in a region outside the Chinese mainland, the SSL certificate ID appended with region information is ${your-cert-id}-ap-southeast-1.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-cert-id: "${The appended certificate ID}"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-alpn: "on"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-alpn-policy: "HTTP1Only"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

スケジューリングアルゴリズムの設定

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-scheduler

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-scheduler: "sch"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

接続ドレインの設定

以下の注釈が使用される。

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-connection-drain: "on"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-connection-drain-timeout: "30"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

クライアントIP保存の設定

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-preserve-client-ip

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-preserve-client-ip: "on"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

TCPヘルスチェックの設定

以下の注釈が使用される。 TCPヘルスチェックを設定するには、次の表のすべてのアノテーションが必要です。 デフォルトでは、TCPポートに対してヘルスチェックが有効になっています。

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-health-check-flag: "on"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-health-check-type: "tcp"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-health-check-connect-timeout: "8"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-healthy-threshold: "4"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-unhealthy-threshold: "4"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-health-check-interval: "5"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

HTTPヘルスチェックの設定

以下の注釈が使用される。 TCPヘルスチェックを設定するには、次の表のすべてのアノテーションが必要です。 デフォルトでは、TCPポートに対してヘルスチェックが有効になっています。

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-health-check-flag: "on"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-health-check-type: "http"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-health-check-uri: "/test/index.html"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-health-check-domain: "www.test.com"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-healthy-threshold: "4"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-unhealthy-threshold: "4"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-health-check-connect-timeout: "10"
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-health-check-interval: "5"
    # Optional. Specify the health check method.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-health-check-method: "head"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

バックエンドサーバーグループの種類を指定する

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-server-group-type

apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-zone-maps: "${zone-A}:${vsw-A},${zone-B}:${vsw-B}" # Example: cn-hangzhou-k:vsw-i123456,cn-hangzhou-j:vsw-j654321.
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-server-group-type: "Ip"
  name: nginx
  namespace: default
spec:
  externalTrafficPolicy: Local
  ports:
  - name: tcp
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  selector:
    app: nginx
  loadBalancerClass: "alibabacloud.com/nlb"
  type: LoadBalancer

既存のvServerグループの再利用

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-vgroup-port

このアノテーションは、vServerグループを再利用するために使用できます。 このアノテーションは、既存のNLBインスタンスを使用する場合にのみ有効です。 詳細については、「既存のSLBインスタンスを再利用して異なるACKクラスターでサービスを公開する」をご参照ください。

重み付きラウンドロビンを有効にするサービスの重みを設定する

注釈: service.beta.kubernetes.io/alibaba-cloud-loadbalancer-weight

複数のサービスが同じNLBインスタンスを使用する場合、このアノテーションを使用して、現在のサービスに配信されるトラフィックの割合を指定できます。 このアノテーションは、既存のvServerグループが再利用された場合にのみ有効です。 詳細については、「既存のSLBインスタンスを再利用して異なるACKクラスターでサービスを公開する」をご参照ください。
