Create and manage a workspace

View and associate computing resources:

If multiple RAM users need to develop, manage, or perform O&M in a workspace, you must add the users as workspace members and assign different roles to the members. PAI provides multiple types of roles. You can view the mappings between roles and permissions and assign different roles to members based on your business requirements.

• Add a member or a role



  You can select one or more roles for a RAM user based on your business requirements. The following table describes the supported roles.

  Role	Description
  Basic Role	Basic Role includes the following roles: Administrator: This role has the permissions to modify members and manage resource groups and all assets in a workspace. Algorithm Developer: This role has the permissions to develop and train models in a workspace. Algorithm O&M Engineer: This role has the permissions to manage job priorities, publish models, and monitor online services. Labeling Administrator: This role has the permissions to use iTAG. Visitor: This role has the read-only permissions on all assets in the workspace.
  Computing Resource Role	MaxCompute Developer: The developer role in DataWorks. This role has the permissions to develop data in MaxCompute. You can assign this role to the RAM users that you want to use to submit jobs from PAI to MaxCompute.
  Custom Role	The following figure shows how to create a custom role. Permission description: No Permissions: No permissions on a service. Read-only: The permissions to view the resources owned by a specific member and the resources that are visible to all members in a service. Modify/Execute: The permissions to modify and manage the resources owned by a specific member in a service. Full Access: Full management permissions on all resources in a service.

• Modify the role of a member



  Relationships between members and roles:

  • Each member must be assigned at least one role.

  • You cannot delete the Owner role. An Alibaba Cloud account or RAM user that is used to create a workspace automatically becomes the owner of the workspace. The owner has the permissions to modify the members of the workspace, reference and manage resource groups, and manage all assets in the workspace.

PAI provides a resource management and scheduling mechanism that allows workspace administrators to flexibly schedule resources in a workspace based on business requirements.

PAI provides a notification mechanism for workspaces. You can create notification rules to monitor the status of DLC jobs and pipeline jobs, or trigger related events based on the approval status of model versions.

1. (Optional) Grant permissions required to create a notification rule.

   The first time you create a notification rule, you must activate EventBridge and attach the AliyunServiceRoleForPAIWorkspace role to the PAI workspace. Procedure:

   1. Activate EventBridge.

      To facilitate account management, PAI automatically creates a custom event bus that is named in the pai-system-${Workspace name} format for each workspace. You can log on to the EventBridge console, switch to the region where the workspace resides, and manage the custom event bus.

   2. Click Authorize Now and grant the required permissions.

      In this case, the system automatically creates the service-linked role AliyunServiceRoleForPAIWorkspace. For more information about the service-linked role, see Appendix: Service-linked role AliyunServiceRoleForPAIWorkspace.



   3. Use the following code to create a custom policy and attach the policy to the RAM user.

      {
        "Statement": [{
          "Effect": "Allow",
          "Action": [
            "eventbridge:CreateEventBus",
            "eventbridge:GetEventBus",
            "eventbridge:DeleteEventBus",
            "eventbridge:ListEventBuses",
            "eventbridge:CreateRule",
            "eventbridge:GetRule",
            "eventbridge:UpdateRule",
            "eventbridge:EnableRule",
            "eventbridge:DisableRule",
            "eventbridge:DeleteRule",
            "eventbridge:ListRules",
            "eventbridge:PutEvents",
            "eventbridge:UpdateTargets",
            "eventbridge:DeleteTargets",
            "eventbridge:ListTargets"
          ],
          "Resource": "acs:eventbridge:*:*:eventbus/*"
        }],
        "Version": "1"
      }

2. Create an event notification rule.



   Parameter	Description
   Event Type	Supported event types: Pipeline Jobs: Machine Learning Designer pipeline jobs. Valid values in the Event Type drop-down list: Job Failure and Job Completed (Succeeded or Failed). DLC Jobs: DLC jobs. Valid values in the Event Type drop-down list: Job Progress (including Enter Queue, Start Bidding, Start Run, and Job Failure), Automatic Fault Tolerance, Job Timeout (you must configure a timeout rule in DataWorks Scheduling Settings), and Other Events (including Job Preempted and Job Manually Stopped). Models: models registered in AI Computing Asset Management. Valid values in the Event Type drop-down list: Version Approved and Version Status Changed (Approved or Rejected). If you select Version Approved, the system sends an event notification when the model approval status changes from Pending to Approved.
   Event Target	DingTalk Notification: You must configure the Webhook and Add Signature parameters. For more information, see the Appendix: Obtain a webhook URL and a key section of this topic. You can click Test Connectivity to check whether the configured content is valid. HTTPS/HTTP: This option is available only when you set Event Type to Models. You must set the URL parameter to the URL of the specified HTTP or HTTPS operation. The system calls a specified HTTP or HTTPS operation when the model version status changes. Note that the specified operation needs to be parsed based on the specification template. Voice Calls: This option is available only when you set Event Type to Pipeline Jobs or DLC Jobs. You must configure contacts. If no contacts are available, you can configure notifications. For more information, see How do I configure notifications? Text Message: The configuration method is the same as that for Voice Calls. Email: The configuration method is the same as that for Voice Calls. Important By default, the number of event targets in a single event rule is 5. If the quota cannot meet the requirements, you can apply for quotas. We recommend that the requested number of event targets does not exceed 100. Note: When you configure the voice call, text message, and email methods, each contact that you add occupies a quota. Contacts are accumulated without deduplication. For example, if the contacts Alice and Tony are added to the text message method and Alice and Alan are added to the email method, the total quota is 4.

You must specify a default storage path for the workspace.

• We recommend that you specify the default storage path for the workspace to store the temporary data and models that are generated during model training. This allows you to manage the data in a unified manner.

• If you also specify a pipeline storage path in Machine Learning Designer, the specified pipeline storage path takes precedence over the default storage path of the workspace when the pipeline is run.

You can send logs that are generated for the Data Science Workshop (DSW) instances and DLC jobs in the current workspace to Simple Log Service for custom analysis.

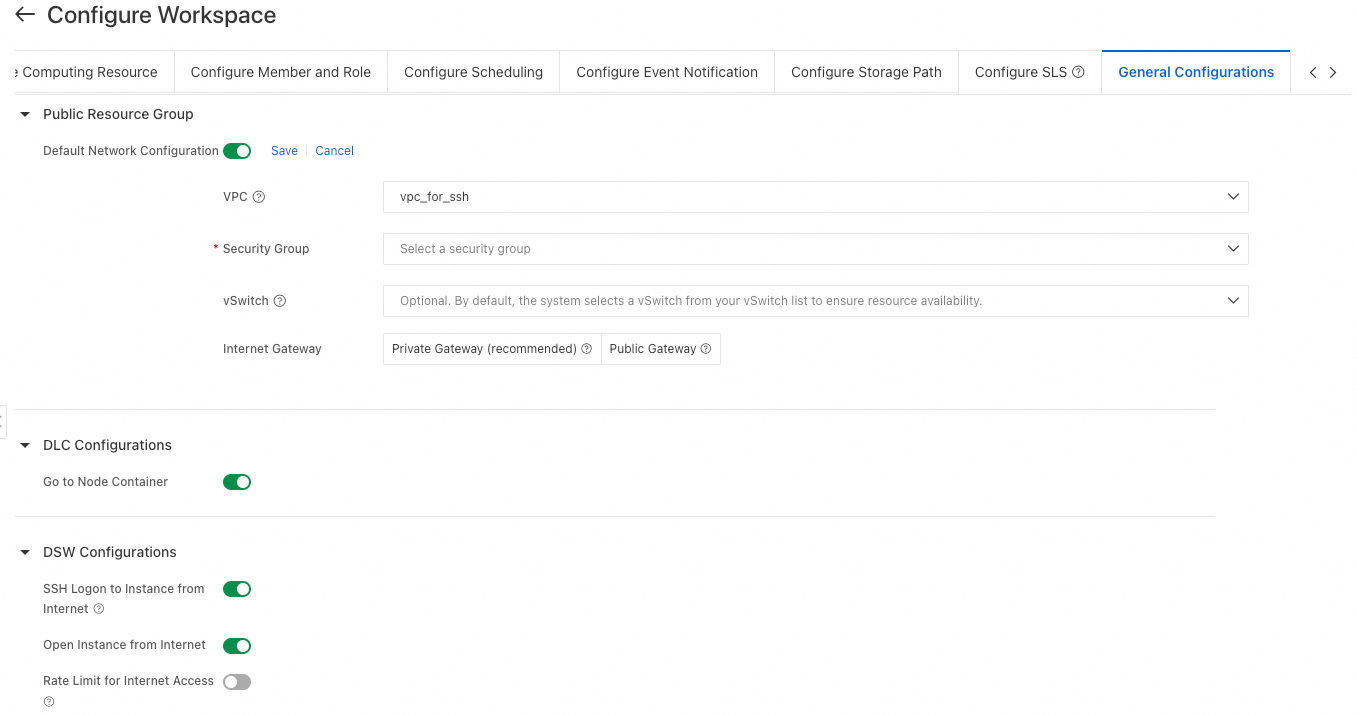

You can enable and disable features and control the access permissions for node containers of DLC jobs on this tab. This tab also provides a switch for connecting to DSW instances by using SSH and a switch for accessing DSW instances over the Internet. This improves the flexibility and security of user access to instances.
