After you create an IPsec-VPN server, you must configure a mobile client before you can establish IPsec-VPN connections between the mobile client and Alibaba Cloud.

Prerequisites

Before you start, make sure that the following requirements are met:
  • An IPsec-VPN server is created. For more information, see Work with an IPsec client.
  • The following information is obtained in the VPN Gateway console:
    • The public IP address of the VPN gateway that is associated with the IPsec-VPN server.
    • The version of the IKE protocol used by the IPsec-VPN server.
    • The pre-shared key used by the IPsec-VPN server.

Configure an iOS client

IPsec-VPN servers support only mobile phones that run an iOS operating system. In this topic, iOS 14 is used as an example to describe how to configure a mobile client.

  1. Open Settings on your mobile phone.
  2. Choose General > VPN > Add VPN Configuration.
  3. On the Add Configurations page, set the following parameters.
    • Type: Select a VPN protocol.

      The IKE version that you set for this parameter must be the same as that of the IPsec-VPN server.

    • Description: Enter a description for the VPN.
    • Server: Enter the public IP address of the VPN gateway to which you want to connect by using the mobile client.
    • Remote ID: Enter the public IP address of the VPN gateway to which you want to connect by using the mobile client.
    • Local ID: Enter the identifier of the mobile client. You can leave this parameter empty.
    • User Authentication: Select None.
    • Use Certificate: Turn off the switch.
    • Secret: Enter the secret that is used for identity verification between the IPsec-VPN server and the mobile client. An IPsec-VPN connection can be established only when both ends use the same secret.

      In this example, the pre-shared key of the IPsec-VPN server is used.

    • Proxy: Select Off.
  4. Click Done.

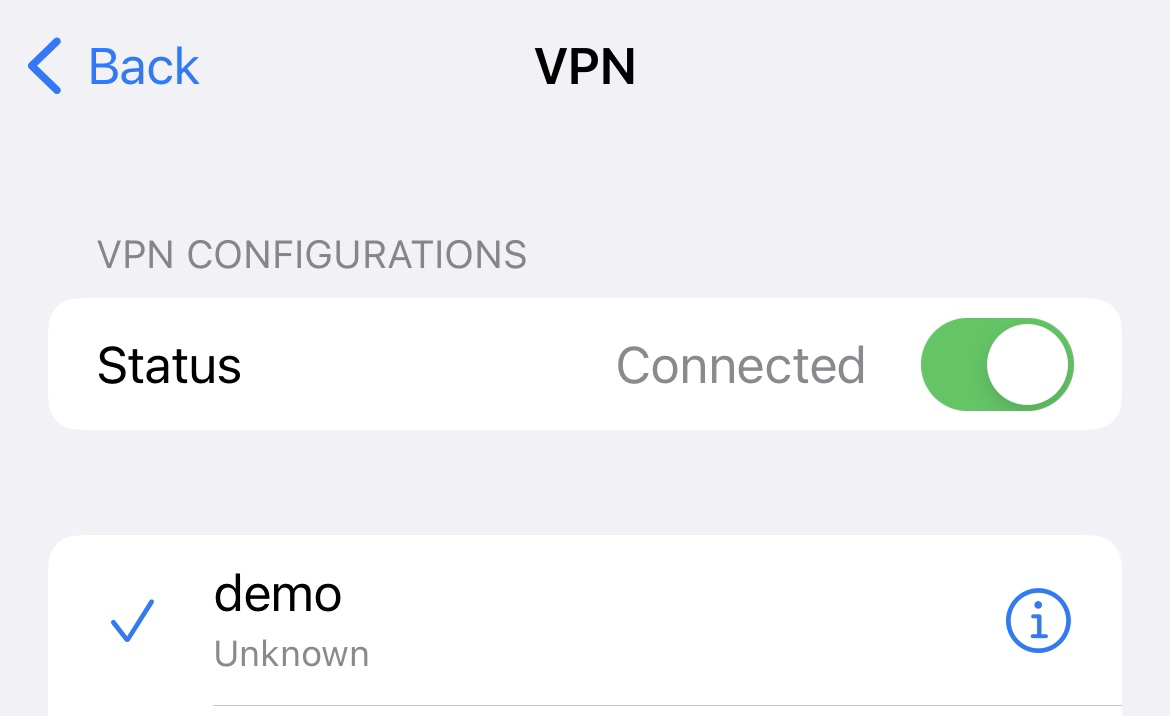

  5. On the VPN page, select the VPN configuration and turn on the Status switch.

    If the status displays Connected, it indicates that the IPsec-VPN connection is established.
