Mobile Platform as a Service:Use SDK

This topic uses the official Share Demo to demonstrate how to use the Share SDK for baselines 10.1.60 and later.

Configure the project

Configure the whitelist for third-party application redirects

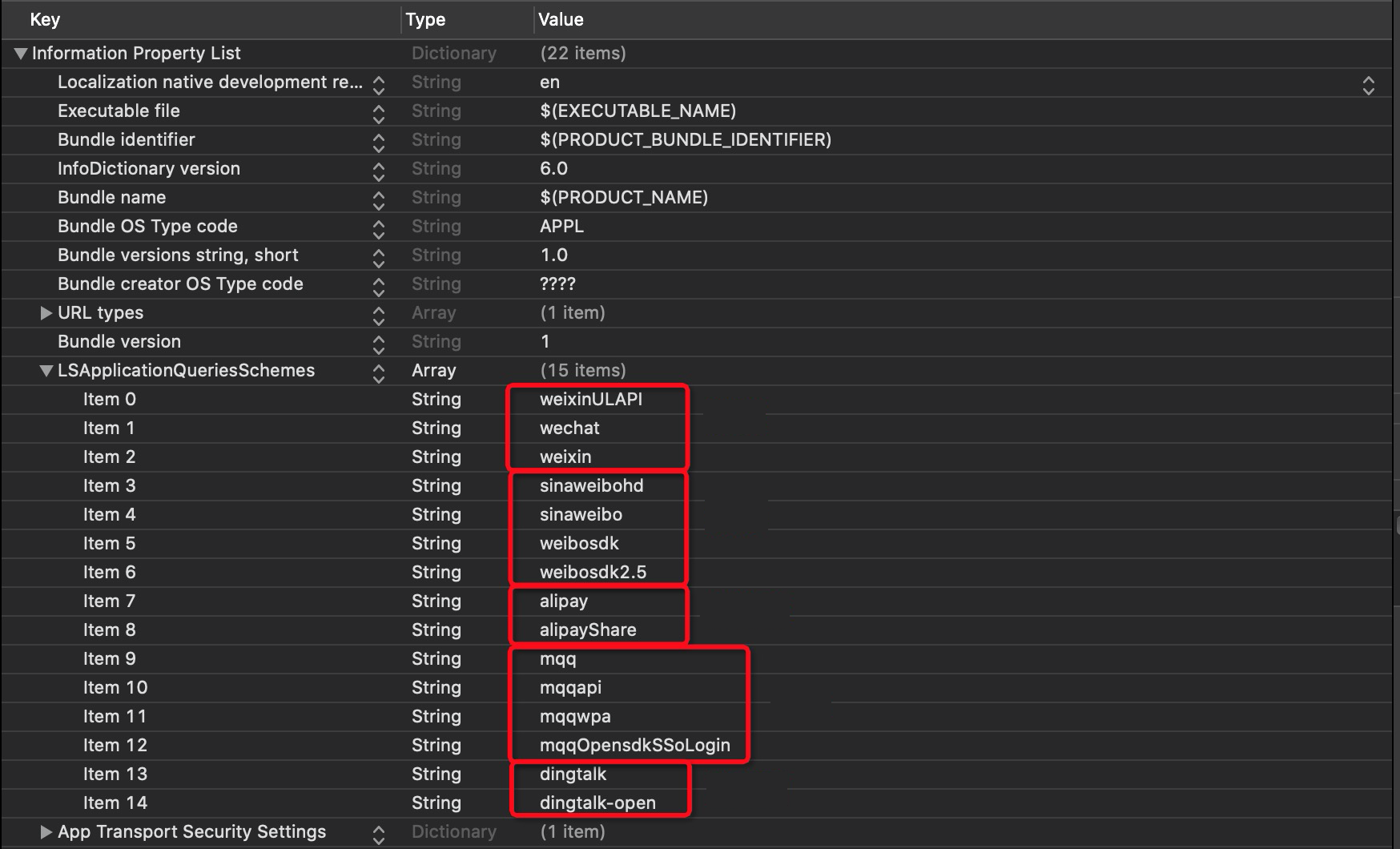

In iOS 9 and later, you must configure a Scheme list to support application sharing and authorization. The system automatically checks the info.plist file for the application's scheme. An application cannot redirect if its scheme is not configured.

The `Value` for each channel is as follows:

• WeChat: weixinULAPI, wechat, weixin.

• Weibo: sinaweibohd, sinaweibo, weibosdk, weibosdk2.5.

• Alipay: alipay, alipayShare.

• QQ: mqq, mqqapi, mqqwpa, mqqOpensdkSSoLogin.

• DingTalk: dingtalk, dingtalk-open.

Configure the URL Scheme

To ensure correct redirection from a third-party application back to your application, add a `urlScheme` to your project's `Info.plist` file. You can obtain the `urlScheme` from each sharing channel.

• The callback scheme for WeChat is the assigned key.

• The scheme for Weibo is "wb" + key.

• The scheme for QQ is "tencent" + APPID.

• The identifier for Alipay is `alipayShare`, and the scheme is 'ap' + APPID.

Initialization

To use the Share component, you must first create your application on the third-party platform. Then, register your application with its information, such as `appId`, `appSecret`, and `universalLink`. The following sections describe the registration methods.

When using the mPaaS framework

Implement the following method in the `DTFrameworkInterface` category. In this method, return the `key` and `secret` values as a dictionary.

-(void)application:(UIApplication *)application beforeDidFinishLaunchingWithOptions:(NSDictionary *)launchOptions
{
    NSDictionary *configDic = @{
        @"weixin" : @{@"key":@"xxxxxxxxxxxxxx", @"secret":@"xxxxxxxxxxxxxxx", @"universalLink":@"https://mpaas.example.com/"},
        @"weibo" : @{@"key":@"xxxxxxxxxx", @"secret":@"xxxxxxxxxxxxxxxxx"},
        @"qq" : @{@"key":@"xxxxxxxxx", @"secret":@"xxxxxxxxxx"},
        @"alipay": @{@"key":@"xxxxxxxxxxxxx"},/*The bundleID corresponding to this key is "com.alipay.share.demo". For testing, change it to your own requested key or change the bundleID to "com.alipay.share.demo".*/
        @"dingTalk": @{@"key":@"xxxxxxxxxxxxxxxx"}};
    [APSKClient registerAPPConfig:configDic];
}

When not using the mPaaS framework

Register the key in the application's startup method.

-(BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions
{
    NSDictionary *dic = @{
        @"weixin" : @{@"key":@"xxxxxxxxxxxxxx", @"secret":@"xxxxxxxxxxxxxxx",@"universalLink":@"https://mpaas.example.com/"},
        @"weibo" : @{@"key":@"xxxxxxxxxx", @"secret":@"xxxxxxxxxxxxxxx"},
        @"qq" : @{@"key":@"xxxxxxxxxx", @"secret":@"xxxxxxxxxxxxxx"},
        @"alipay" : @{@"key":@"xxxxxxxxxxxxxxxx"},/*The bundleID corresponding to this key is "com.alipay.share.demo". For testing, change it to your own requested key or change the bundleID to "com.alipay.share.demo".*/
        @"dingTalk": @{@"key":@"xxxxxxxxxxxxxxxxxxx"}};
    [APSKClient registerAPPConfig:dic];
}

Basic features

Sharing

Open the sharing panel

When you open the sharing panel, you can specify the channels to display.

NSArray *channelArr = @[kAPSKChannelQQ, kAPSKChannelLaiwangContacts, kAPSKChannelLaiwangTimeline, kAPSKChannelWeibo, kAPSKChannelWeixin, kAPSKChannelCopyLink,kAPSKChannelDingTalkSession];

self.launchPad = [[APSKLaunchpad alloc] initWithChannels:channelArr sort:NO];
self.launchPad.delegate = self;
[self.launchPad showForView:[[UIApplication sharedApplication] keyWindow] animated:YES];

Complete the sharing operation

You can perform the sharing operation in the sharingLaunchpad callback of @protocol APSKLaunchpadDelegate.

-(void)sharingLaunchpad:(APSKLaunchpad *)launchpad didSelectChannel:(NSString *)channelName
{
    [self shareUrl:channelName];
    [self.launchPad dismissAnimated:YES];
}

- (void)shareUrl:(NSString*)channelName
{
    // Generate data and call the corresponding channel to share.
    APSKMessage *message = [[APSKMessage alloc] init];
    message.contentType = @"url"; // The content type can be "text", "image", or "url".
    message.content = [NSURL URLWithString:@"www.example.com.cn"];
    message.icon = [UIImage imageNamed:@"1"];
    message.title = @"Title";
    message.desc = @"Description";

    APSKClient *client = [[APSKClient alloc] init];

    [client shareMessage:message toChannel:channelName completionBlock:^(NSError *error, NSDictionary *userInfo) {
        // userInfo is for extended information.
        if(!error)
        {
            // Your logic
        }
        NSLog(@"error = %@", error);
    }];
}

Handle redirection from the channel application

• If you use the mPaaS framework, no action is required. The framework handles the redirection.

• If you do not use the mPaaS framework, handle the redirection using the following code.

- (BOOL)application:(UIApplication *)application openURL:(NSURL *)url sourceApplication:(NSString *)sourceApplication annotation:(id)annotation
{
    // Handle the redirection from the channel app back to the source app after a successful share.
    BOOL ret;
    ret = [APSKClient handleOpenURL:url];
    return ret;
}

Open services

You can use the third-party developer service interface to call other open services provided by the third-party channel's Share SDK. Currently, the supported open services are WeChat one-time subscription messages and launching WeChat mini programs.

Procedure to request open services

The procedure to request open services is as follows:

// 1. Create a request object.
APSKOpenServiceRequest *req = [APSKOpenServiceRequest new];
// 2. Set the request type.
req.requestType = APSKOpenServiceRequestTypeLaunchMini;
// 3. Set the required parameters.
MPSKLaunchMiniProgramParam *param = [[MPSKLaunchMiniProgramParam alloc] init];
param.userName = @"xxxxxxxx";
param.path = @"/index.html";
param.miniProgramType = MPSKWXMiniProgramTypeTest;

req.param = param;

// 4. Create a client object.
APSKClient *client = [APSKClient new];
// 5. Request the service.
[client requestOpenService:req toChannel:kAPSKChannelWeixin completionBlock:^(NSError *error, NSDictionary *userInfo) {
    // 6. Callback.
    if (error) {
        NSLog(@"%@", error);
    }
}];

Handle redirection from the channel application

After returning from the third-party application, refer to the following code to handle the callback.

  - (BOOL)application:(UIApplication *)application openURL:(NSURL *)url sourceApplication:(NSString *)sourceApplication annotation:(id)annotation
  {
      // Handle the redirection from the channel app back to the source app.
      BOOL ret;
      ret = [APSKClient handleOpenURL:url];
      return ret;
  }
