Web Application Firewall:Enable WAF protection for an ECS instance

更新時間:Nov 10, 2024

If your web services are deployed on an Elastic Compute Service (ECS) instance, you can add the ECS instance to Web Application Firewall (WAF). WAF monitors and filters inbound and outbound traffic on the ports of the ECS instance to enhance the security of your web services. This topic describes how to enable WAF protection for an ECS instance.

Background information

ECS is a high-performance, stable, reliable, and scalable IaaS-level service provided by Alibaba Cloud. ECS eliminates the need for upfront investment in IT hardware. This way, you can deploy applications in an efficient manner. ECS allows you to scale resources based on changes in requirements and traffic spikes. For more information, see What is ECS?.

You can enable WAF protection for an ECS instance. After you enable WAF protection for an ECS instance, all web traffic of the instance is routed to WAF by using a specific gateway for inspection. WAF filters out malicious traffic and forwards normal traffic to the ECS instance. The following figure shows the network architecture.


Limits

Web services that use one of the following Alibaba Cloud services can be added to WAF in cloud native mode: Application Load Balancer (ALB), Microservices Engine (MSE), Function Compute, Classic Load Balancer (CLB), Elastic Compute Service (ECS), and Network Load Balancer (NLB).. If you want to use WAF to protect web services that do not use the preceding Alibaba Cloud services, add the domain names of the web services to WAF in CNAME record mode. For more information, see Add a domain name to WAF.

Item

Description

Supported instances

You can add only an instance that meets the following requirements to WAF:

  • The instance is an Internet-facing instance.

  • The instance does not use IPv6.

  • Mutual authentication is disabled for the instance.

Supported regions

  • Chinese mainland: China (Chengdu), China (Beijing), China (Zhangjiakou), China (Hangzhou), China (Shanghai), China (Shenzhen), and China (Qingdao).

  • Outside the Chinese mainland: China (Hong Kong), Malaysia (Kuala Lumpur), and Indonesia (Jakarta).

Number of traffic redirection ports

The maximum number of traffic redirection ports is the same as the maximum number of protected objects.

  • Subscription WAF instances: 300 in the Basic edition, 600 in the Pro edition, 2,500 in the Enterprise edition, and 10,000 in the Ultimate edition.

  • Pay-as-you-go WAF instances: 10,000.

Supported ports

Standard and non-standard ports from 0 to 65535 are supported. For more information, see View supported ports.

Services protected by Anti-DDoS Proxy and WAF

If you want to protect your web services by using Anti-DDoS Proxy and WAF, you can add the services to WAF in transparent proxy mode only if you add the services to Anti-DDoS Proxy by adding a domain name.

Prerequisites

  • A WAF 3.0 instance is purchased. For more information, see Purchase a subscription WAF 3.0 instance and Purchase a pay-as-you-go WAF 3.0 instance.

  • An ECS instance that complies with the preceding usage limits is created. For more information, see the "Limits" section in this topic. For information about how to create an ECS instance, see Create an instance.

  • If you use a subscription WAF instance, make sure that the number of protected objects that you added to WAF does not exceed the upper limit. If the number exceeds the upper limit, you can no longer add cloud service instances to WAF.

    To view the number of protected objects that you can add to WAF, go to the Protected Objects page. image.png

Add traffic redirection ports

Important
  • The first time you add an instance to WAF, your web services may be interrupted for several seconds. If clients can be automatically reconnected, the web services automatically resume. Configure reconnection mechanisms and back-to-origin settings based on your business requirements.

  • If you perform the following operations after you enable WAF protection for an ECS instance, the traffic redirection ports are automatically removed from WAF. If you do not re-add the ports to WAF, traffic on the ports is not filtered by WAF.

    • Change the public IP address associated with the instance

    • Create a migration task and change the zone

    • The instance is released.

  • If you enable WAF protection for an ECS instance, traffic that is destined for the elastic IP address (EIP) or public IP address associated with the ECS instance is redirected to WAF.

  • If you disassociate an EIP from the ECS instance, traffic redirection is automatically disabled.

  1. Log on to the WAF 3.0 console. In the top navigation bar, select the resource group and region of the WAF instance. You can select Chinese Mainland or Outside Chinese Mainland.

  2. In the left-side navigation pane, click Website Configuration.

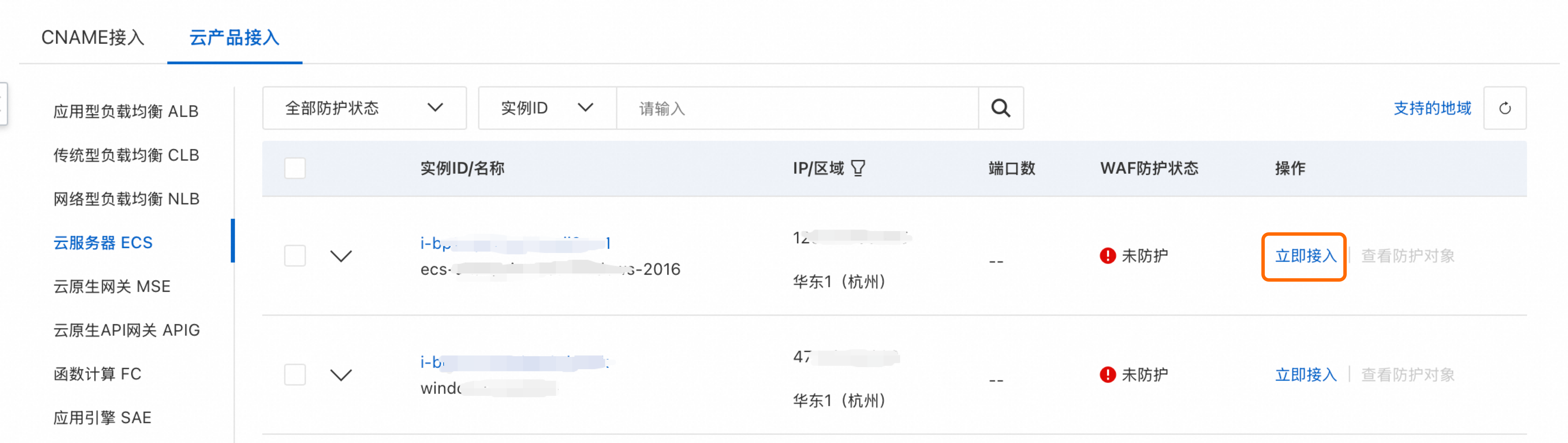

  3. On the Cloud Native tab of the Website Configuration page, select ECS in the left-side cloud service list. Click Add.

  4. Click Authorize Now to authorize your WAF instance to access ECS.

    Alibaba Cloud automatically creates the AliyunServiceRoleForWAF service-linked role. To view the service-linked role, log on to the Resource Access Management (RAM) console and choose Identities > Roles in the left-side navigation pane.

    Note

    If you already authorized your WAF instance to access ECS, skip this step.

  5. In the Configure Instance - ECS Instance panel, configure the parameters. The following table describes the parameters.


    Parameter

    Operation

    Select the instance and port to be added.

    1. Synchronize Instances

      If the instance that you want to add to WAF is not in the instance list, click Synchronize Instances to refresh the instance list.

    2. Add Port

      1. Find the instance that you want to add to WAF and click Add Port in the Actions column.

      2. Enter the number of the port that you want to add to WAF and press the Enter key.

        The port number must be supported by WAF. You can click View Port Range to view the HTTP and HTTPS ports supported by WAF. For more information, see View supported ports.

      3. Select the protocol type for the port that you want to add to WAF. Valid values: HTTP and HTTPS.

        If you select HTTPS, you must upload a certificate.

        Note

        The total number of default and additional certificates that you upload cannot exceed 10.

        • Default Certificate

          • Upload

            Click Upload and configure the Certificate Name, Certificate File, and Private Key parameters. The value of the Certificate File parameter must be in the -----BEGIN CERTIFICATE-----...-----END CERTIFICATE----- format. The value of the Private Key parameter must be in the -----BEGIN RSA PRIVATE KEY-----...-----END RSA PRIVATE KEY----- format.

            Important
            • If the certificate file is in the PEM, CER, or CRT format, you can use a text editor to open the file and copy the text content. If the certificate file is in another format, such as PFX or P7B, you must convert the certificate file to the PEM format before you can use a text editor to open the certificate file and copy the text content. You can log on to the Certificate Management Service console and use the provided tool to convert the file format. For more information, see Convert the format of a certificate.

            • If a domain name is associated with multiple SSL certificates or has a certificate chain, you can combine the text content of the certificate files and upload the combined text content.

          • Select Existing Certificate

            If your certificate meets one of the following conditions, click Select Existing Certificate and select the certificate from the certificate list:

            • The certificate is issued by using Certificate Management Service.

            • The certificate is a third-party certificate that is uploaded to Certificate Management Service.

              Important

              If you select a third-party certificate that is uploaded to Certificate Management Service and the Failed to verify the integrity of the certificate chain. If you use this certificate, service access may be affected. error message appears, click Alibaba Cloud Security - Certificate Management Service and re-upload the certificate in the Certificate Management Service console. For more information, see Upload and share an SSL certificate.

        • Additional Certificate

          If you configured the instance to allow traffic from multiple domain names over HTTPS, click Additional Certificate to import the certificates of the domain names. The parameters that are used to upload an additional certificate and a default certificate are the same. For more information, see Default Certificate.

        • If you select HTTPS, you can click Advanced Settings to configure the following advanced parameters:

          • TLS Version

            Specify the versions of the Transport Layer Security (TLS) protocol that are supported for HTTPS communication. If a client uses an unsupported TLS version, WAF blocks requests that are sent from the client. Later versions of the TLS protocol provide higher security but lower compatibility.

            We recommend that you specify the TLS versions based on the HTTPS settings of your website. If you cannot obtain the HTTPS settings of your website, we recommend that you use the default value.

            Valid values:

            • TLS 1.0 and Later (Best Compatibility and Low Security) (default)

            • TLS 1.1 and Later (High Compatibility and High Security)

              If you select this value, a client that uses TLS 1.0 cannot access your website.

            • TLS 1.2 and Later (High Compatibility and Best Security)

              If you select this value, a client that uses TLS 1.0 or 1.1 cannot access your website.

            If your website supports TLS 1.3, select Support TLS 1.3. By default, WAF does not listen for requests that are sent by using TLS 1.3.

          • Cipher Suite

            Specify the cipher suites that are supported for HTTPS communication. If a client uses unsupported cipher suites, WAF blocks the requests that are sent from the client.

            The default value is All Cipher Suites (High Compatibility and Low Security). We recommend that you set this parameter to a different value only if your website supports specific cipher suites.

            Valid values:

            • All Cipher Suites (High Compatibility and Low Security).

            • Custom Cipher Suite (Select It Based on Protocol Version. Proceed with Caution.): If your website supports only specific cipher suites, we recommend that you select this value and then select the cipher suites that are supported by your website. For more information, see View supported cipher suites.

              Clients that use other cipher suites cannot access your website.

    Whether Layer 7 Proxy, Such as Anti-DDoS Pro, Anti-DDoS Premium, or Alibaba Cloud CDN, Is Deployed in Front of WAF

    Specify whether a Layer 7 proxy is deployed in front of WAF, such as Anti-DDoS Proxy and Alibaba Cloud CDN. Valid values: Yes and No.

    • By default, No is selected. This value specifies that WAF receives requests that are sent from clients. The requests are not forwarded by proxies.

      Note

      When a request is sent from a client to WAF, WAF uses the IP address that is used to establish the connection to WAF as the IP address of the client. The IP address is specified by the REMOTE_ADDR field of the request.

    • If a Layer 7 proxy is deployed in front of WAF, select Yes. This value specifies that WAF receives requests that are forwarded to WAF by a Layer 7 proxy. To ensure that WAF can obtain the actual IP addresses of clients for security analysis, you must configure the Obtain Actual IP Address of Client parameter.

      • Use the First IP Address in X-Forwarded-For Field as Actual IP Address of Client (default)

        By default, WAF uses the first IP address in the X-Forwarded-For field as the IP address of a client.

      • [Recommended] Use the First IP Address in Specified Header Field as Actual IP Address of Client to Prevent X-Forwarded-For Forgery

        If you use a proxy that contains the originating IP addresses of clients in a custom header field, such as X-Client-IP or X-Real-IP, select this value. Then, enter the custom header field in the Header Field field.

        Note

        We recommend that you use custom header fields to store the originating IP addresses of clients and specify the header fields in WAF. This way, attackers cannot forge the X-Forwarded-For field to bypass WAF inspection. This improves the security of your business.

        You can enter multiple header fields. Press the Enter key each time you enter a header field. If you enter multiple header fields, WAF reads the header fields in sequence until it obtains the IP address of a client. If WAF cannot obtain the IP address of a client from the header fields, WAF uses the first IP address in the X-Forwarded-For field as the IP address of the client.

    Resource Group

    Select the resource group to which you want to add the ECS instance from the Resource Group drop-down list. If you do not select a resource group, the ECS instance is added to the default resource group.

    Note

    You can use Resource Management to create resource groups and manage resources within your Alibaba Cloud account by department or project. For more information, see Create a resource group.

    Advanced Settings

    • Obtain the listening protocol of WAF by using the X-Forwarded-Proto header field

      The X-Forwarded-Proto header field is automatically added to HTTP requests. The X-Forwarded-Proto header field is used to identify the original protocol used by the client. If your website cannot correctly handle the X-Forwarded-Proto header field, compatibility issues may occur and your business may be affected. To prevent such issues, clear Obtain the listening protocol of WAF by using the X-Forwarded-Proto header field.

    • Enable Traffic Mark

      If you select Enable Traffic Mark, requests that pass through WAF are marked. This helps origin servers obtain the originating IP addresses or ports of clients.

      If an attacker obtains information about your origin server before you add your domain name to WAF and uses another WAF instance to forward requests to the origin server, you can select Enable Traffic Mark to intercept malicious traffic. The origin server checks whether the requests passed through WAF. If the specified header fields exist in a request, the request passed through WAF and is allowed. If the specified header fields do not exist in a request, the request did not pass through WAF and is blocked.

      You can configure the following types of header fields:

      • Custom Header

        If you want to add a custom header field, you must configure the Header Name and Header Value parameters. WAF adds the header field to the back-to-origin requests. This allows the origin server to check whether requests passed through WAF, collect statistics, and analyze data.

        For example, you can add the ALIWAF-TAG: Yes custom header field to mark the requests that pass through WAF. In this example, the name of the header field is ALIWAF-TAG and the value of the header field is Yes.

      • Originating IP Address

        You can specify a header field that records the originating IP addresses of clients. This way, your origin server can obtain the originating IP addresses of clients. For more information about how WAF obtains the originating IP addresses of clients, see the description of the Whether Layer 7 Proxy, Such as Anti-DDoS Pro, Anti-DDoS Premium, or Alibaba Cloud CDN, Is Deployed in Front of WAF parameter in this topic.

      • Source Port

        You can specify a header field that records the originating ports of clients. This way, your origin server can obtain the ports of clients.

      Important

      We recommend that you do not configure a standard HTTP header field, such as User-Agent. Otherwise, the original value of the standard header field is overwritten by the value of the custom header field.

      You can click Add Mark to add a header field. You can specify up to five header fields.

    • Back-to-origin Keep-alive Requests

      If the persistent connections between WAF and your origin server time out, you can reconfigure the timeout period of persistent connections, the number of reused persistent connections, and the timeout period of idle persistent connections.

      • Read Connection Timeout Period: the amount of time during which WAF waits for a response from the origin server. After the timeout period ends, WAF closes the connection. Valid values: 1 to 3600. Default value: 120. Unit: seconds.

      • Write Connection Timeout Period: the amount of time during which WAF waits for a request to be forwarded to the origin server. After the timeout period ends, the origin server closes the connection. Valid values: 1 to 3600. Default value: 120. Unit: seconds.

      • Back-to-origin Keep-alive Requests: If you want to configure the number of reused persistent connections or the timeout period of idle persistent connections, turn on Back-to-origin Keep-alive Requests and configure the following parameters:

        • Reused Keep-alive Requests: the number of requests that WAF can forward to the origin server or the number of responses that WAF can receive from the origin server at the same time. Valid values: 60 to 1000. Default value: 1000.

        • Timeout Period of Idle Keep-alive Requests: the timeout period of idle persistent connections. Valid values: 10 to 3600. Default value: 3600. Unit: seconds.

  6. Select the ECS instance that you want to enable WAF protection and click OK.

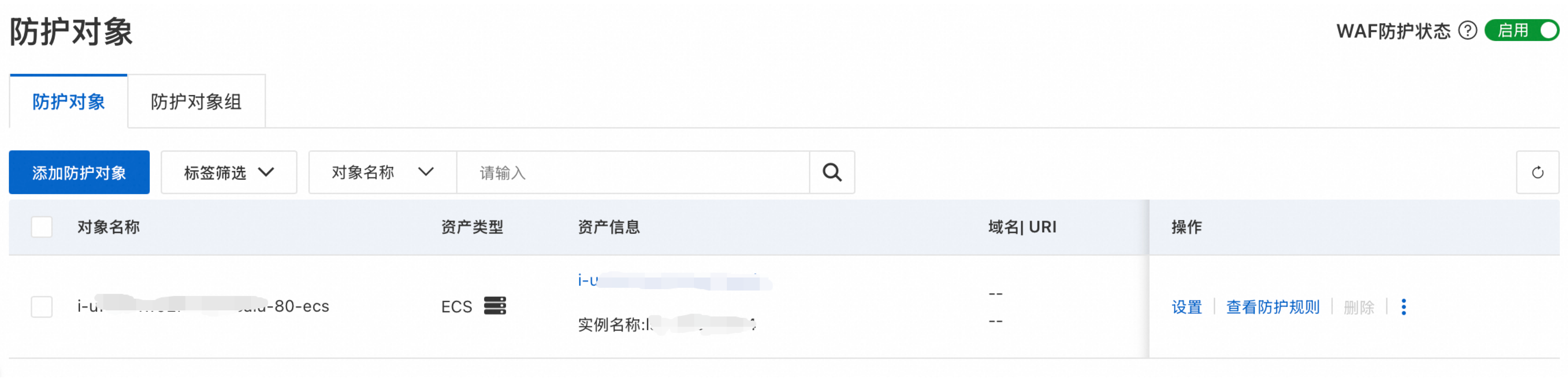

    After you enable WAF protection for an ECS instance, the instance automatically becomes a protected object of WAF. The name of the protected object is in the following format: Instance ID-Port number-Asset type. By default, basic protection rules are enabled for the protected object. You can configure protection rules for the protected object on the Protected Objects page. To go to the Protected Objects page, click the ID of the ECS instance that you added to WAF on the Cloud Native tab of the Website Configuration page. For more information, see Protection configuration overview. 防护对象

Manage WAF protection

View origin servers and manage traffic redirection ports

After you enable WAF protection for an ECS instance, you can view the protection details of the origin servers and forcibly disable traffic redirection or remove traffic redirection ports in emergency disaster recovery scenarios.

  1. On the Website Configuration page, click the Cloud Native tab.

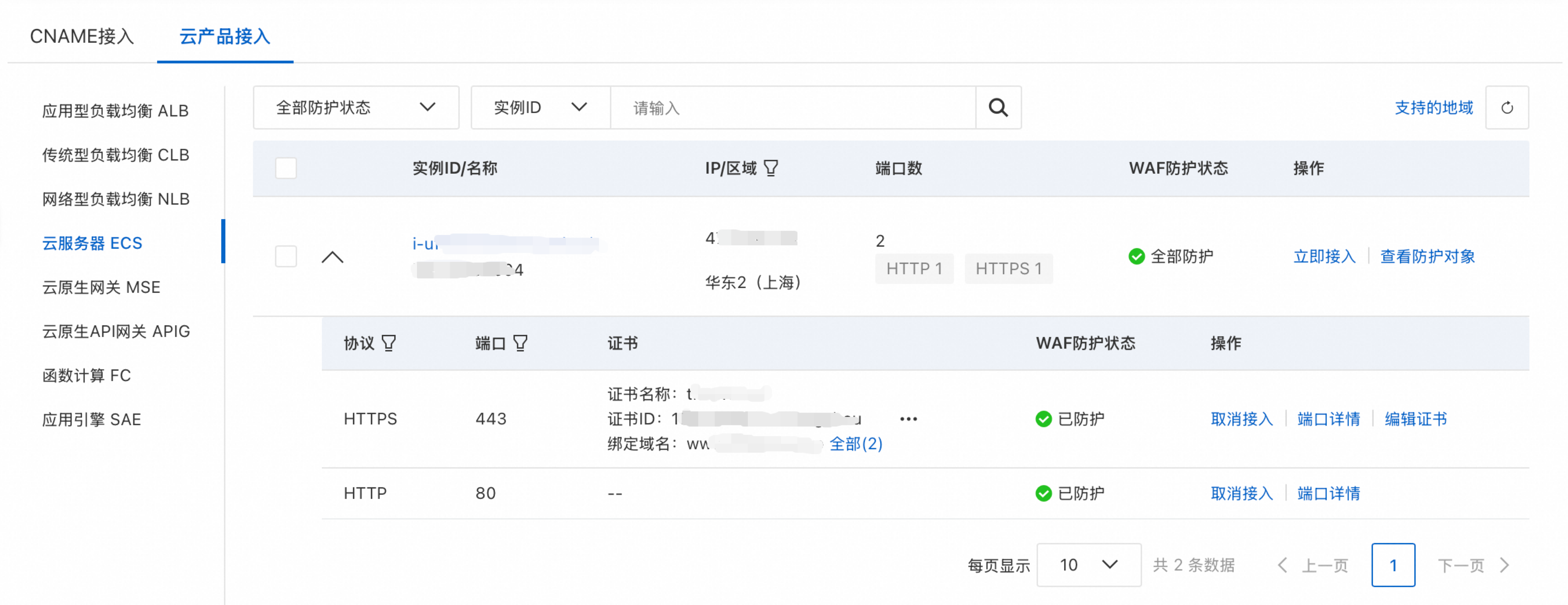

  2. In the left-side cloud service list, click ECS. Find the ECS instance whose traffic redirection ports you want to view and click the image.png icon to the left of the instance name to view the ports that are added to WAF.image.png

    • View port details: Click Port Details in the Actions column to view information about the port, protocol, and certificate. Then, configure the Whether Layer 7 Proxy, Such as Anti-DDoS Pro, Anti-DDoS Premium, or Alibaba Cloud CDN, Is Deployed in Front of WAF, Enable Traffic Mark (Advanced Settings), and Back-to-origin Keep-alive Requests (Advanced Settings) parameters.

    • Remove ports: Click Remove in the Actions column. In the Remove message, click OK.

      Important

      After you remove a traffic redirection port from WAF, the following occurs:

      • Traffic on the port is no longer protected by WAF. To re-add the traffic redirection port to WAF, click Add. For more information , see Add traffic redirection ports.

      • Your web services may be interrupted for several seconds. If clients can be automatically reconnected, the web services automatically resume. Configure reconnection mechanisms and back-to-origin settings based on your business requirements.

Update the SSL certificate bound to a traffic redirection port

If the SSL certificate that is bound to a traffic redirection port is about to expire or the certificate is changed, you must update the certificate.

Note
  • If the remaining validity period of the certificate is less than 30 days, the image.png icon is displayed in the domain name list. This indicates that your certificate is about to expire. In this case, you must update the certificate at the earliest opportunity.

  • If you want to receive notifications by using methods such as email or text message when the certificate is about to expire, you can configure notifications for the certificate. For more information, see Configure notifications for SSL certificates.

  • To prevent service interruptions due to certificate expiration, enable the certificate hosting feature of Certificate Management Service. If you enable this feature for a certificate, the system automatically applies for a new certificate when the hosted certificate is about to expire. For more information, see Introduction to the certificate hosting feature.

To update the SSL certificate that is bound to a traffic redirection port, perform the following steps:

  1. Renew the certificate or upload a third-party certificate to Certificate Management Service. For more information, see Certificate renewal or Upload and share an SSL certificate.

  2. Synchronize the certificate to WAF.

    • In the Certificate Management Service console, deploy the certificate to WAF. For more information, see Deploy certificates to Alibaba Cloud services.

    • Update the certificate in the WAF console.

      1. On the Cloud Native tab, click ECS in the left-side cloud service list. Find the instance that you want to manage and click the image.png icon. Find the traffic redirection port whose certificate you want to update and click Modify in the Actions column.

      2. In the Default Certificate dialog box, select Select Existing Certificate, and then select the new certificate from the drop-down list.

FAQ

Why am I unable to find the CLB or ECS instance that I want to add to WAF on the Website Configuration page?
