Object Storage Service：Use temporary access credentials provided by STS to access OSS

Prerequisites

A bucket is created. For more information, see Create a bucket.

Step 1: Create a RAM user

1. Log on to the RAM console.

2. In the left-side navigation pane, choose Identities > Users.

3. On the Users page, click Create User.

4. Configure the Logon Name and Display Name parameters.

5. In the Access Mode section, select Using permanent AccessKey to access. Then, click OK.

6. Complete security verification as prompted.

7. Copy the AccessKey pair (AccessKey ID and AccessKey secret).

   Important

   You can obtain the AccessKey secret of a RAM user only when you create the RAM user. You must keep the AccessKey secret safely to prevent credential leaks.

Step 2: Grant the RAM user the permissions to call the AssumeRole operation

After you create the RAM user, grant the RAM user the permissions to call the AssumeRole operation of STS.

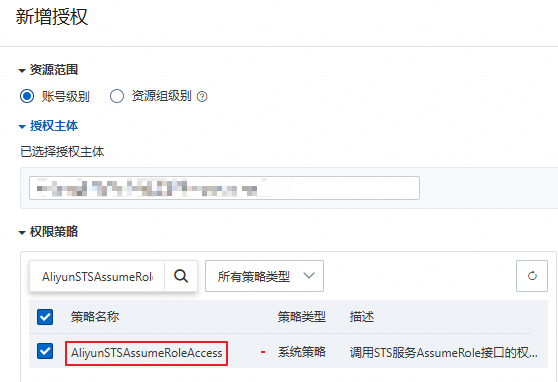

1. On the Users page, find the RAM user that you created and click Add Permissions in the Actions column.

2. In the Policy section of the Grant Permission panel, select the AliyunSTSAssumeRoleAccess policy.

   Note

   The AliyunSTSAssumeRoleAccess policy allows a RAM user to call the AssumeRole operation. The permissions of the policy are independent of the permissions required for the RAM user to obtain temporary access credentials from STS and initiate requests to OSS.



3. Click Grant permissions.

Step 3: Create a RAM role

Create a RAM role to declare the permissions of the RAM role when the RAM role is assumed.

1. In the left-side navigation pane, choose Identities > Roles.

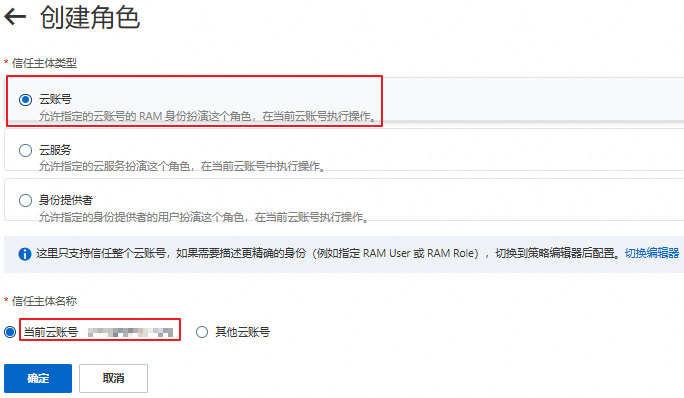

2. Click Create Role. In the Select Role Type step of the Create Role wizard, set Select Trusted Entity to Alibaba Cloud Account and click Next.

3. In the Configure Role step of the Create Role wizard, set RAM Role Name to RamOssTest and Select Trusted Alibaba Cloud Account to Current Alibaba Cloud Account.

4. Click OK. After the role is created, click Close.

5. On the Roles page, enter RamOssTest in the search box, click the search icon, and click RamOssTest in the search result.

6. Click Copy on the right side of the RamOssTest page to save the Alibaba Cloud Resource Name (ARN) of the role.

Step 4: Grant the RAM role the permissions to upload objects to OSS

Attach one or more policies to the RAM role to grant the RAM role the permissions to perform operations on OSS resources when the RAM role is assumed. For example, if you want a RAM user to assume this RAM role and only upload objects to a specific OSS bucket, you must attach a policy that grants write permissions to the RAM role.

1. Create a custom policy to grant the role the permissions to upload objects.

   1. In the left-side navigation pane, choose Permissions > Policies.

   2. On the Policies page, click Create Policy.

   3. On the Create Policy page, click JSON. Enter the following script in the code editor to grant the RAM role the permissions to upload objects to the examplebucket bucket.

      Warning

      The following example is only for reference. You must configure fine-grained RAM policies based on your requirements to prevent granting excessive permissions to users. For more information about how to configure fine-grained RAM policies, see Example 9: Use RAM or STS to authorize users to access OSS resources.

      {
          "Version": "1",
          "Statement": [
           {
                 "Effect": "Allow",
                 "Action": [
                   "oss:PutObject"
                 ],
                 "Resource": [
                   "acs:oss:*:*:examplebucket/*"
                 ]
           }
          ]
      }

      Note

      The Action element specifies the permissions that you want to grant to the RAM role. For example, if you specify oss:PutObject, the RAM user that assumes the RAM role can upload objects to the specified bucket by using various upload methods, such as simple upload, form upload, append upload, multipart upload, and resumable upload. For more information, see Action element in RAM policies for OSS.

   4. Click Next to edit policy information.

   5. In the Basic Information section, set Name to RamTestPolicy and click OK.

2. Attach the custom policy to the RamOssTest role.

   1. In the left-side navigation pane, choose Identities > Roles.

   2. On the Roles page, find the RamOssTest role.

   3. Click Grant Permission in the Actions column.

   4. In the Grant Permission panel, select Custom Policy from the drop-down list in the Policy section and select the RamTestPolicy policy.

   5. Click Grant permissions.

Step 5: Use the RAM user to assume the RAM role to obtain temporary access credentials

After you grant the RAM role the permissions to upload objects to OSS, the RAM user assumes the RAM role to obtain temporary access credentials. Temporary access credentials include a security token (SecurityToken), temporary AccessKey pair (AccessKey ID and AccessKey secret), and validity period (Expiration).

Step 6: Use the temporary access credentials to upload objects to OSS

Before the validity period (Expiration) of the temporary access credentials ends, use the temporary access credentials to upload local files to OSS.

The following sample code provides an example on how to upload the exampletest.txt file from the local path D:\\localpath to the examplebucket bucket by using OSS SDK for Java 3.12.0. For more information about how to use temporary access credentials to upload data by using OSS SDKs for other programming languages, see Overview.

import com.aliyun.oss.OSS;
import com.aliyun.oss.OSSClientBuilder;
import com.aliyun.oss.OSSException;
import com.aliyun.oss.model.PutObjectRequest;
import com.aliyuncs.exceptions.ClientException;

import java.io.File;

public class Demo {
    public static void main(String[] args) throws ClientException {
// Specify the endpoint of the region in which the bucket is located. For example, if the bucket is located in the China (Hangzhou) region, set the endpoint to https://oss-cn-hangzhou.aliyuncs.com. Specify your actual endpoint.
 String endpoint = "https://oss-cn-hangzhou.aliyuncs.com";
// Obtain the temporary AccessKey pair generated in Step 5 from environment variables.
String accessKeyId = System.getenv("OSS_ACCESS_KEY_ID");
String accessKeySecret = System.getenv("OSS_ACCESS_KEY_SECRET");
// Obtain the security token generated in Step 5 from environment variables.
String securityToken = System.getenv("OSS_SESSION_TOKEN");

// Create an OSSClient instance.
OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret, securityToken);
// Upload a local file named exampletest.txt to examplebucket.
PutObjectRequest putObjectRequest = new PutObjectRequest("examplebucket", "exampletest.txt", new File("D:\\localpath\\exampletest.txt"));

// ObjectMetadata metadata = new ObjectMetadata();
// Specify the storage class of the uploaded object.
// metadata.setHeader(OSSHeaders.OSS_STORAGE_CLASS, StorageClass.Standard.toString());
// Specify the access control list (ACL) of the uploaded object.
// metadata.setObjectAcl(CannedAccessControlList.Private);
// putObjectRequest.setMetadata(metadata);

try {
     // Upload the local file.
     ossClient.putObject(putObjectRequest);
    } catch (OSSException oe) {
        System.out.println("Caught an OSSException, which means your request made it to OSS, "
                + "but was rejected with an error response for some reason.");
        System.out.println("Error Message:" + oe.getErrorMessage());
        System.out.println("Error Code:" + oe.getErrorCode());
        System.out.println("Request ID:" + oe.getRequestId());
        System.out.println("Host ID:" + oe.getHostId());
    } finally {
        if (ossClient != null) {
            ossClient.shutdown();
        }
    }
}
}

FAQ

References

• You can use temporary access credentials to upload data to OSS directly from your client and specify upload conditions, such as the file size, file types, and destination directories. For more information, see Direct client uploads.

• You can use signed URLs to share objects that are uploaded by using temporary access credentials. For more information, see Share objects with object URLs.
