Android SDK UI自訂配置說明

更新時間：2024-10-28 20:09
社區

ID Verification- KYC Android SDK提供自訂UI顏色、icon表徵圖的介面，開發人員可以通過編寫自訂UI配置，以檔案或JSON資料格式通過傳入setCustomUIConfig介面實現UI的自訂效果。本文為您介紹UI自訂介面說明以及相關的程式碼範例。

說明

部分自訂配置可能需要依賴SDK升級，建議您在使用之前將SDK升級至最新版本。如使用者介面自訂設定與驗證介面的擴充參數存在衝突，優先使用使用者介面自訂設定。請確保 UI 自訂設定優先於任何驗證介面參數，以提供一致且直觀的使用者體驗。

介面說明

Android SDK中提供了自訂UI顏色和icon表徵圖的介面：setCustomUIConfig。您可以通過調用此方法並傳入對應參數來實現自訂UI的效果。

介面定義


    /**
     * @return 設定檔檢測出的異常資訊。
     * @description 此介面用於設定自訂UI。
     * @paramType paramType 參數類型{@link IDTFacade} ，可傳範圍
     * {@link IDTFacade.EXT_PARAMS_CONFIG_JSON} | {@link IDTFacade.EXT_PARAMS_CONFIG_ASSETS_NAME}）。
     *
     * @params {@link String} params 參數值，與paramType相對應的值。
     */
    public String setCustomUIConfig(@IDTFacade int paramType, String param) {
     ...
    }

參數說明

名稱

類型

說明

名稱

類型

說明

paramType

int

配置自訂入參的類型，可選值：

  • IDTFacade.EXT_PARAMS_CONFIG_ASSETS_NAME：App assets檔案類型，param傳入assets檔案名稱。

  • IDTFacade.EXT_PARAMS_CONFIG_JSON：JSON字串，params傳入JSON格式資料。

param

String

根據paramType取值傳入相應資料。

傳回值

String類型，當SDK對param內容解析遇到錯誤或出現異常資訊時會通過提示資訊的方式返回。

當配置參數無效時，請重點關注傳回值資訊。

範例程式碼

//傳入assets檔案名稱
String fileName = "DTFCustomUIConfig.json";
int paramType = IDTFacade.EXT_PARAMS_CONFIG_ASSETS_NAME;
String customUIErrMsg =  IdentityPlatform.getInstance().setCustomUIConfig(paramType, fileName);

//傳入JSON字串
String jsonConfig = "<JSON格式的自訂UI配置>";
int paramType = IDTFacade.EXT_PARAMS_CONFIG_JSON;
String customUIErrMsg =  IdentityPlatform.getInstance().setCustomUIConfig(paramType, jsonConfig);

自訂UI配置內容

自訂UI目前允許使用者自訂認證頁面的字型顏色和部分Icon。完整樣本和欄位的詳細說明如下：

完整配置樣本


{
  "faceConfig": {
    "exitIconBase64": "exit_icon_base64",
    "faceBGColor": "#FFFFFF",
    "faceTitleColor": "#000000",
    "faceTipColor": "#000000",
    "opFailedTitleColor": "#000000",
    "opFailedTipColor": "#000000",
    "opFailedConfirmColor": "#4FA3EC",
    "facePrgressStartColor":"#dfe6eb",
    "faceProgressEndColor": "#FF6A00",
    "exitAlertTitleColor": "#000000",
    "exitAlertMessageColor": "#000000",
    "exitAlertCancelColor": "#4FA3EC",
    "exitAlertConfirmationColor": "#4FA3EC",
    "timeoutAlertTitleColor": "#000000",
    "timeoutAlertMessageColor": "#000000",
    "timeoutAlertConfirmationColor": "#4FA3EC",
    "tooManyRetriesAlertTitleColor": "#000000",
    "tooManyRetriesAlertMessageColor": "#000000",
    "tooManyRetriesAlertConfirmColor": "#4FA3EC",
    "interruptedAlertTitleColor": "#000000",
    "interruptedAlertMessageColor": "#000000",
    "interruptedAlertConfirmColor": "#4FA3EC",
    "permissionFailedAlertTitleColor": "#000000",
    "permissionFailedAlertMessageColor": "#000000",
    "permissionFailedAlertConfirmColor": "#4FA3EC",
    "verifyNetworkErrorAlertTitleColor": "#000000",
    "verifyNetworkErrorAlertMessageColor": "#000000",
    "verifyNetworkErrorAlertConfirmColor": "#4FA3EC",
    "verifyNetworkErrorAlertCancelColor": "#4FA3EC",
    "verifyLoadingColor": "#585858"
  },
  "ocrConfig": {
    "exitIconBase64": "exit_icon_base64",
    "albumBase64": "album_base64",
    "takePhotoBase64": "take_photo_base64",
    "submitBase64": "submit_base64",
    "ocrResultExitIconBase64": "ocr_result_exit_icon_base64",
    "ocrResultTipIconBase64": "ocr_result_tip_icon_base64",
    "ocrTitleColor": "#FFFFFF",
    "ocrBorderColor": "#E3824C",
    "ocrSubmitTitleColor": "#FFFFFF",
    "ocrLoadingColor": "#FFFFFF",
    "failedAlertTitleColor": "#000000",
    "failedAlertMessageColor": "#000000",
    "failedAlertCancelColor": "#4FA3EC",
    "failedAlertConfirmationColor": "#4FA3EC",
    "timeoutAlertTitleColor": "#000000",
    "timeoutAlertMessageColor": "#000000",
    "timeoutAlertConfirmationColor": "#4FA3EC",
    "exitAlertTitleColor": "#000000",
    "exitAlertCancelColor": "#4FA3EC",
    "exitAlertConfirmationColor": "#4FA3EC",
    "ocrResultTitleColor": "#000000",
    "ocrResultTipBGColor": "#DFDFDF",
    "ocrResultTipColor": "#000000",
    "ocrResultInfoTitleColor": "#000000",
    "ocrResultInfoContentColor": "#F6F6F6",
    "ocrResultInfoBorderColor": "#E3824C",
    "ocrResultTipTitleColor": "#D59F9E",
    "ocrResultErrorTipBGColor": "#F6DAD5",
    "ocrResultConfirmBtnDisabledBGColor": "#DADADA",
    "ocrResultConfirmBtnDisabledTitleColor": "#FFFFFF",
    "ocrResultConfirmBtnEnabledBGColor": "",
    "ocrResultConfirmBtnEnabledTitleColor": "#FFFFFF",
    "ocrResultExitAlertTitleColor": "#000000",
    "ocrResultExitAlertCancelColor": "#000000",
    "ocrResultExitAlertConfirmationColor": "#4FA3EC",
    "restrictionsAlertTitleColor": "#000000",
    "restrictionsAlertMessageColor": "#000000",
    "restrictionsAlertConfirmationColor": "#4FA3EC",
    "permissionFailedAlertTitleColor": "#000000",
    "permissionFailedAlertMessageColor": "#000000",
    "permissionFailedAlertConfirmColor": "#4FA3EC",
    "ocrNetworkErrorAlertTitleColor": "#000000",
    "ocrNetworkErrorAlertMessageColor": "#000000",
    "ocrNetworkErrorAlertCancelColor": "#4FA3EC",
    "ocrNetworkErrorAlertConfirmColor": "#4FA3EC",
    "docErrorAlertTitleColor": "#000000",
    "docErrorAlertMessageColor": "#000000",
    "docErrorAlertCancelColor": "#4FA3EC",
    "docErrorAlertConfirmColor": "#4FA3EC",
    "ocrResultNetworkErrorAlertTitleColor": "#000000",
    "ocrResultNetworkErrorAlertMessageColor": "#000000",
    "ocrResultNetworkErrorAlertConfirmColor": "#4FA3EC",
    "ocrResultNetworkErrorAlertCancelColor":"#000000",
    "ocrResultInfoErrorAlertMessageColor": "#000000",
    "ocrResultInfoErrorAlertConfirmColor": "#4FA3EC",
    "ocrResultInfoEmptyAlertTitleColor":"#000000",
    "ocrResultInfoEmptyAlertConfirmColor":"#FF6A00",
    "ocrMessageFailAlertTitleColor":"#FF0000",
    "ocrMessageFailAlertCancelColor": "#FFFF00",
    "ocrMessageFailAlertConfirmColor":"#FF33FF"
  }
}

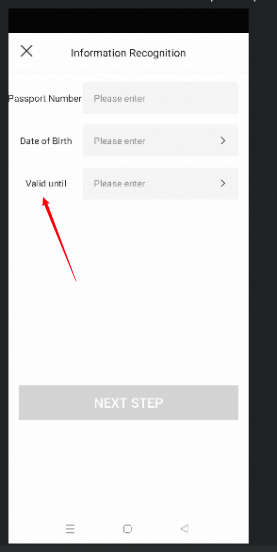

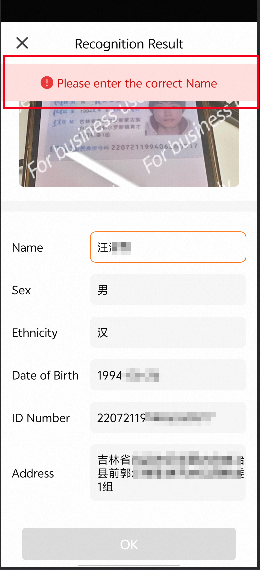

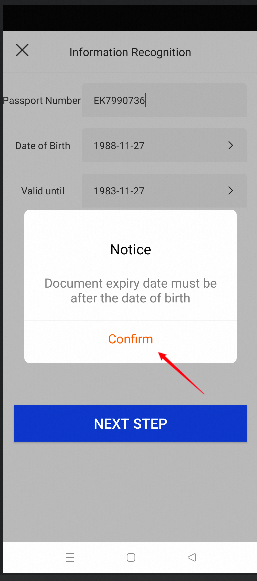

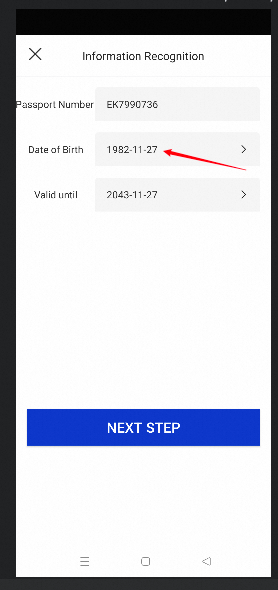

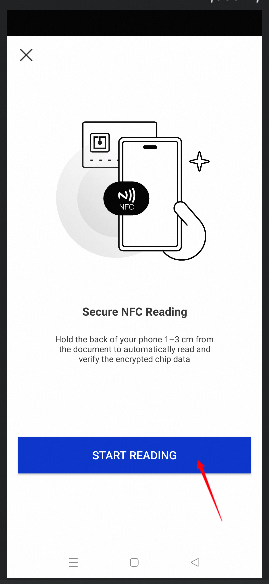

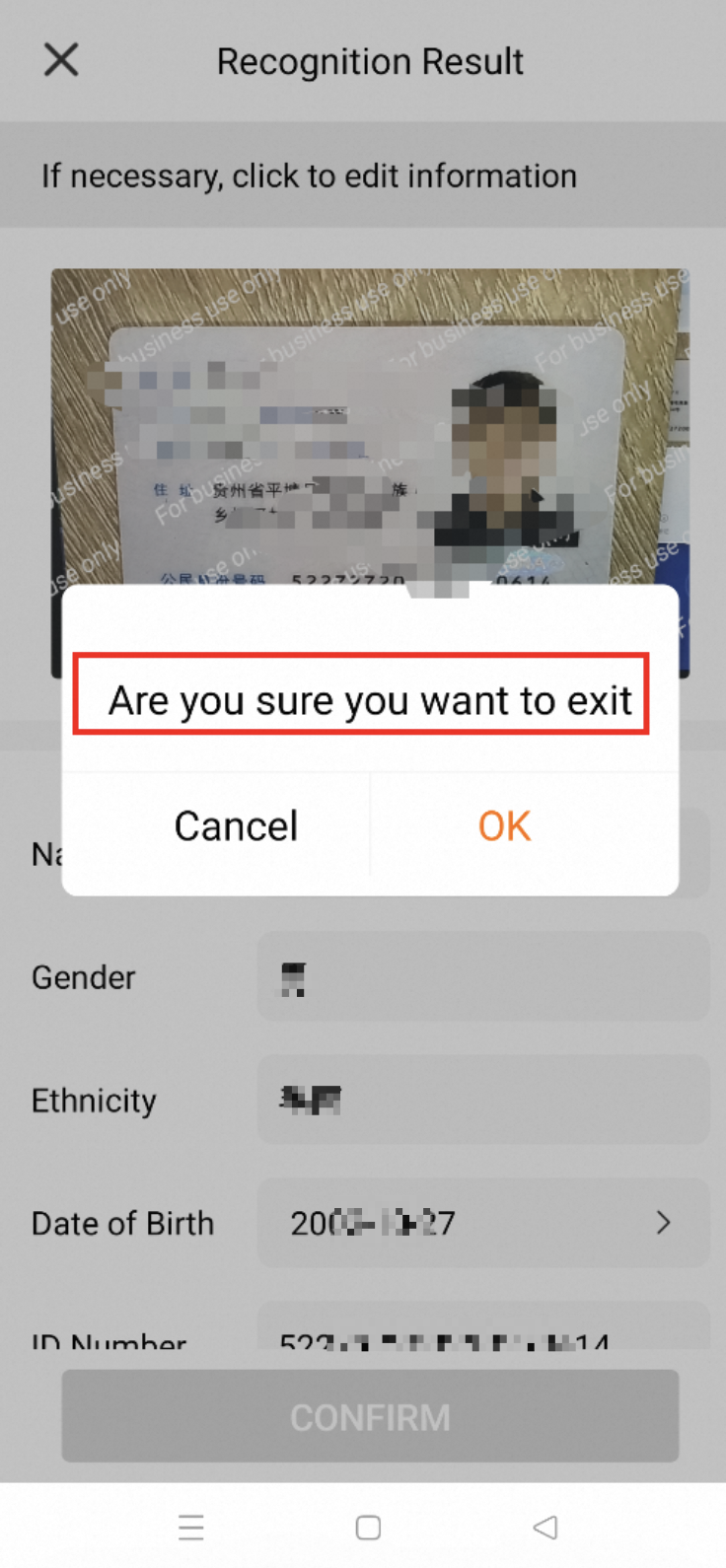

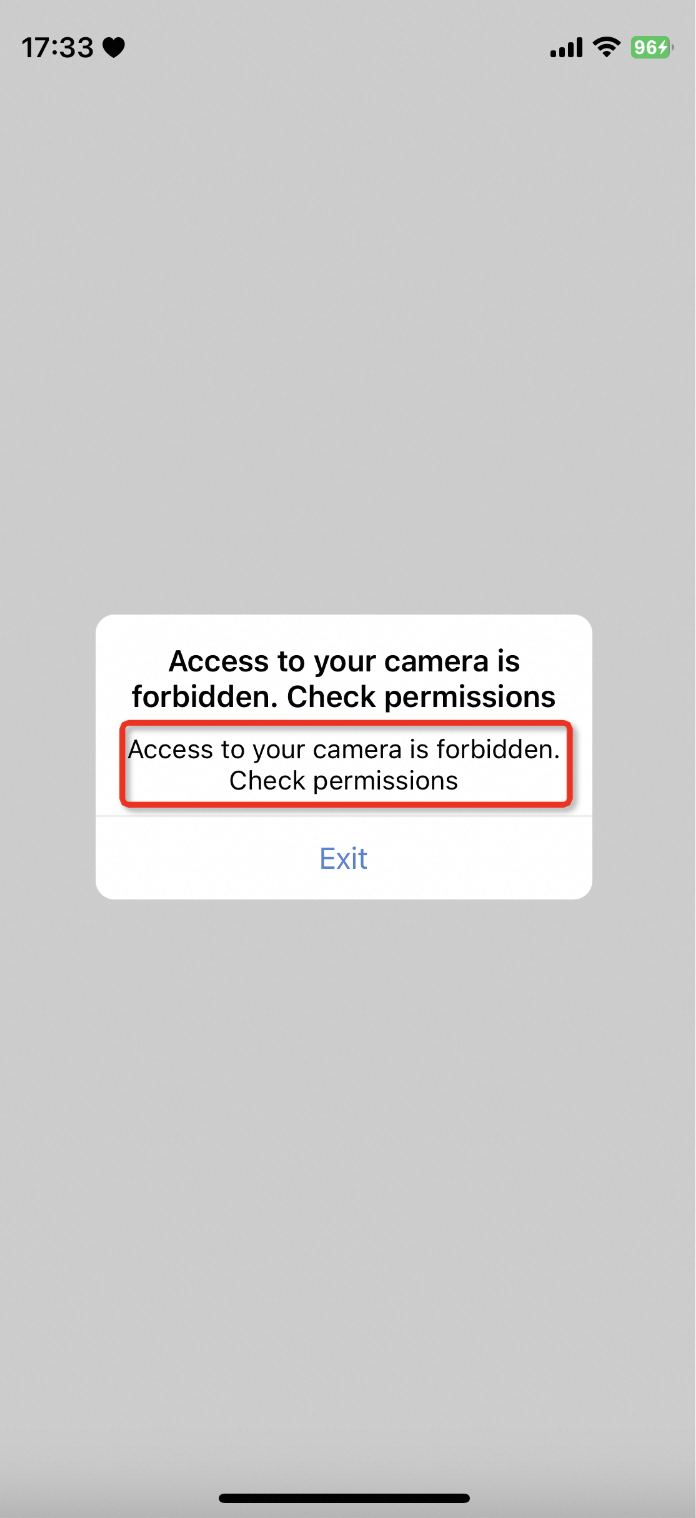

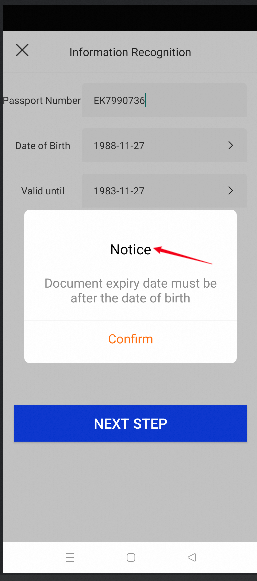

配置欄位詳細說明

模組

key

截圖

faceModule

faceBGColor

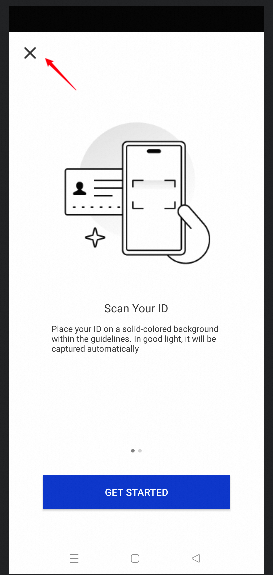

exitIconBase64


faceTitleColor


faceTipColor


interruptedAlertTitleColor


interruptedAlertMessageColor


interruptedAlertConfirmColor


permissionFailedAlertTitleColor


permissionFailedAlertMessageColor


permissionFailedAlertConfirmColor


tooManyRetriesAlertTitleColor


tooManyRetriesAlertMessageColor


tooManyRetriesAlertConfirmColor


faceProgressStartColor


faceProgressEndColor

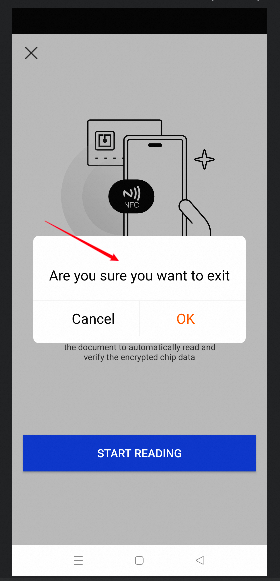

exitAlertTitleColor


exitAlertMessageColor

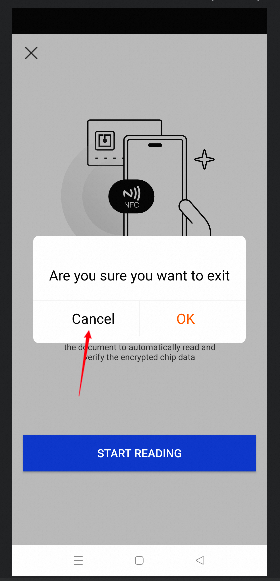

exitAlertCancelColor


exitAlertConfirmationColor


timeoutAlertTitleColor


timeoutAlertMessageColor


timeoutAlertConfirmationColor


verifyLoadingColor


verifyNetworkErrorAlertTitleColor


verifyNetworkErrorAlertMessageColor


verifyNetworkErrorAlertCancelColor


verifyNetworkErrorAlertConfirmColor


ocrModule

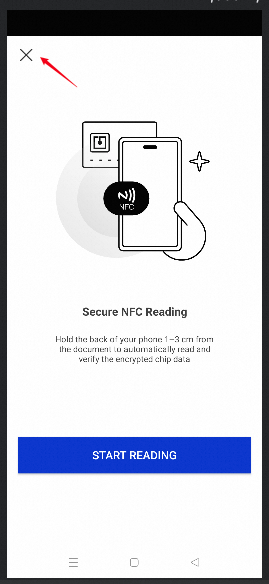

exitIconBase64


ocrTitleColor


ocrBorderColor

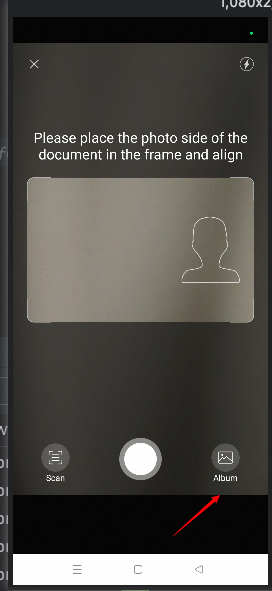

albumBase64


takePhotoBase64


submitBase64


ocrSubmitTitleColor


ocrLoadingColor


failedAlertTitleColor


failedAlertMessageColor


failedAlertCancelColor


failedAlertConfirmationColor


ocrNetworkErrorAlertTitleColor


ocrNetworkErrorAlertMessageColor


ocrNetworkErrorAlertCancelColor


ocrNetworkErrorAlertConfirmColor


permissionFailedAlertTitleColor


permissionFailedAlertMessageColor


permissionFailedAlertConfirmColor


docErrorAlertTitleColor


docErrorAlertMessageColor


docErrorAlertCancelColor


docErrorAlertConfirmColor


restrictionsAlertTitleColor


restrictionsAlertMessageColor


restrictionsAlertConfirmationColor


timeoutAlertTitleColor


timeoutAlertMessageColor


timeoutAlertConfirmationColor


exitAlertTitleColor


exitAlertCancelColor


exitAlertConfirmationColor


ocrMessageFailAlertTitleColor


ocrMessageFailAlertCancelColor


ocrMessageFailAlertConfirmColor

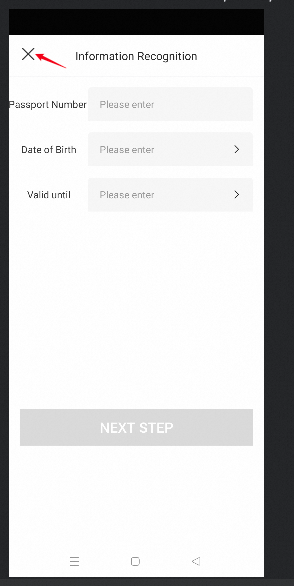

ocrResultExitIconBase64


ocrResultTitleColor


ocrResultTipBGColor


ocrResultTipColor


ocrResultInfoTitleColor

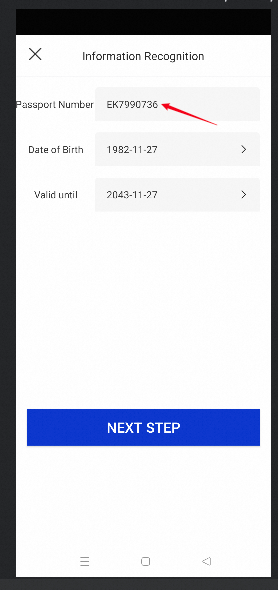

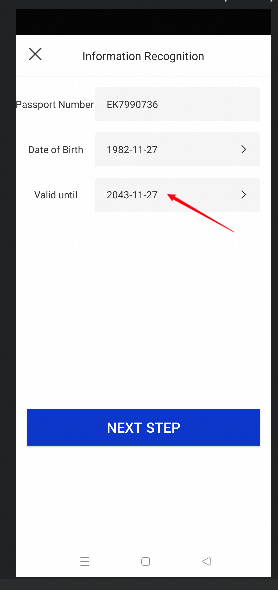

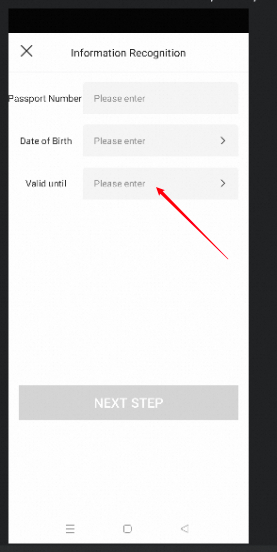

ocrResultInfoContentColor

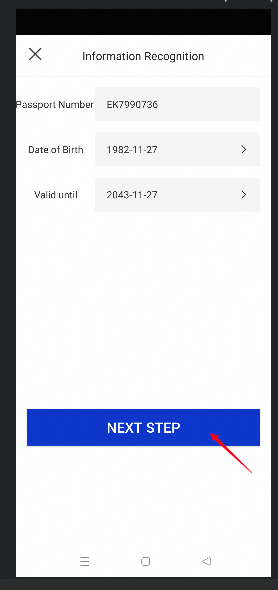

ocrResultConfirmBtnEnabledBGColor


ocrResultConfirmBtnEnabledTitleColo

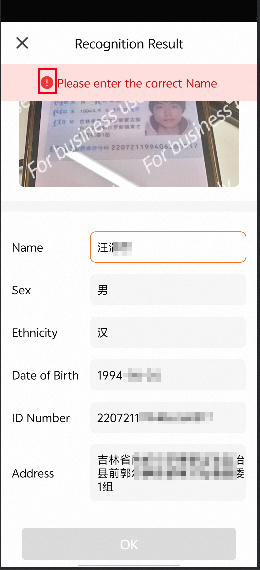

ocrResultTipTitleColor


ocrResultTipIconBase64


ocrResultErrorTipBGColor


ocrResultInfoborderColor

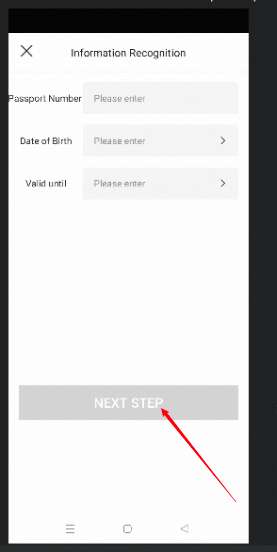

ocrResultConfirmBtnDisabledBGColor


ocrResultConfirmBtnDisabledTitleColor

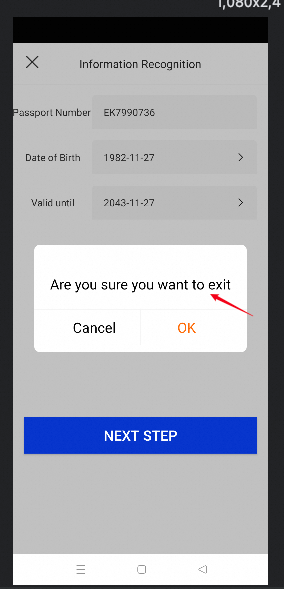

ocrResultExitAlertTitleColor

ocrResultConfirmBtnDisabledTitleColor

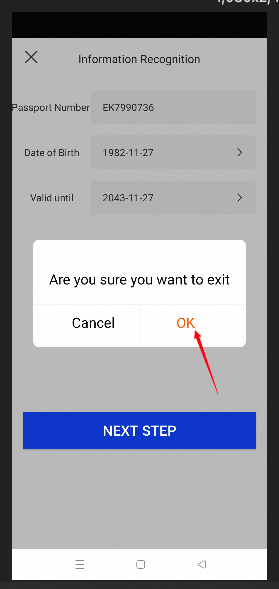

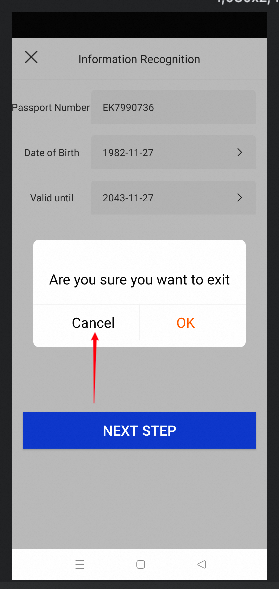

ocrResultExitAlertCancelColor


ocrResultExitAlertConfirmationColor


ocrResultInfoEmptyAlertTitleColor


ocrResultInfoEmptyAlertConfirmColor


ocrResultNetworkErrorAlertTitleColor


ocrResultNetworkErrorAlertMessageColor


ocrResultNetworkErrorAlertConfirmColor


ocrResultNetworkErrorAlertCancleColor

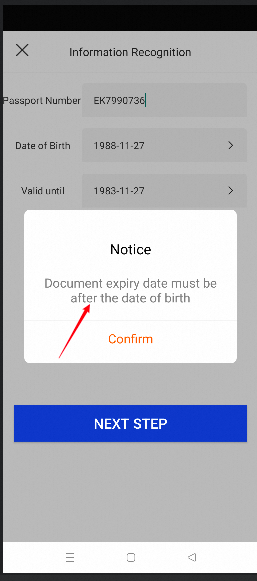

ocrResultInfoErrorAlertMessageColor


ocrResultInfoErrorAlertConfirmColor
