IoT Platform:Connect a device to IoT Platform by using MQTT.fx

Configure MQTT.fx

1. Download and install the MQTT.fx tool.

   In this example, mqttfx-5.2.0-windows-x64 is used. The third-party tool is not regularly updated. We recommend that you download the latest tool from the website in the previous reference link.

   Note

   You must apply for a license to use MQTT.fx.

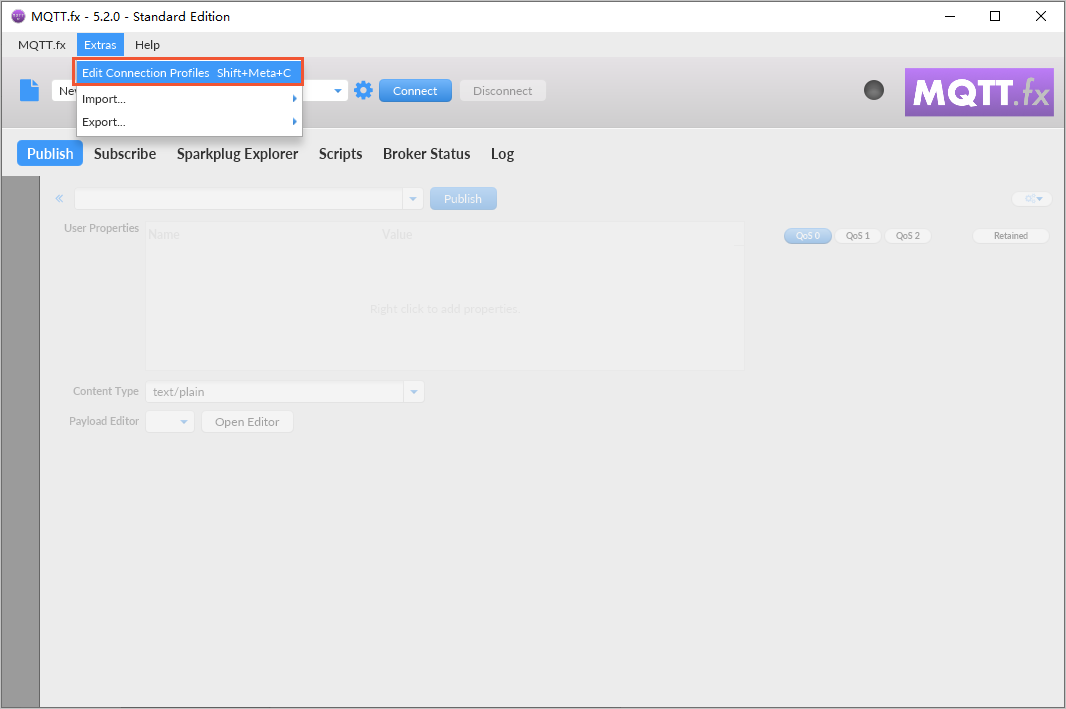

2. Start the MQTT.fx tool, click Extras in the menu bar, and then select Edit Connection Profiles.



3. On the Edit Connection Profiles page, configure the parameters.

   1. Specify the basic information.

      Parameter	Description
      Profile Name	Enter a custom name. In this example, enter iot connection.
      Profile Type	Specify a connection mode. Select MQTT Broker.
      Broker Address	Enter an MQTT endpoint, which is the value of the mqttHostUrl parameter that you obtained in the Prerequisites section. In this example, enter a1***.iot-as-mqtt.cn-shanghai.aliyuncs.com. a1*** indicates the ProductKey. cn-shanghai indicates the region ID. The port number is not needed.
      Broker Port	Enter a port number. Set this parameter to 1883.
      Client ID	Configure the parameters in the MQTT protocol. Format: ${ClientId}|securemode=${Mode},signmethod=${SignMethod}|timestamp=${timestamp}|. Enter the value of the clientId parameter that you obtained in the "Prerequisites" section of this topic. In this example, a1***.device1|securemode=2,signmethod=hmacsha256,timestamp=2524608000000| is specified. Parameter description: ${ClientId}: the ID of the client, such as a device, an application, or a web browser. Important You must specify a custom client ID. The client ID must be 1 to 64 characters in length. When the client is a device, we recommend that you set this parameter to the MAC address or the serial number (SN) of the device. This allows you to easily identify your devices. ${Mode}: the security mode. Valid values: 2 and 3. If you use a direct TLS connection, specify securemode=2. Then, you must configure the SSL/TLS parameters. If you use a direct TCP connection, specify securemode=3. You do not need to configure the SSL/TLS parameters. ${SignMethod}: the signature algorithm. Valid values: hmacmd256, hmacmd5, and hmacsha1. ${timestamp}: the timestamp of the request. Unit: milliseconds. This parameter is optional. In the connection parameters provided by IoT Platform, the value of the ${ClientId} parameter is a string in the ${ProductKey} + '.' + ${DeviceName} format. The default value of ${Mode} is 2, and the default value of ${SignMethod} is hmacsha256. You can configure the parameters based on your business requirements. Important Do not confuse the Client ID parameter of the MQTT.fx tool with the ${ClientId} parameter of the device. Do not omit the vertical bars (|) between and at the end of the parameters. When you configure the parameters, make sure that you remove all spaces from the parameter values. After you specify the Client ID parameter, do not click Generate.
      General	In this example, the default values of the parameters are used. You can configure the parameters based on your business requirements.

   2. Click User Credentials. On the tab that appears, select Use Username/Password and enter a username and a password.



      Parameter	Description
      User Name	The username consists of a DeviceName, an ampersand (&), and a ProductKey. Format: ${DeviceName}&${ProductKey}. Enter the value of the username parameter that you obtained in the "Prerequisites" section of this topic. In this example, device1&a1*** is specified. device1 indicates the DeviceName of the device. a1*** indicates the ProductKey of the device.
      Password	To generate a password, you must select a signature algorithm, use the DeviceSecret of the device as a secret key, and then concatenate the required parameters and their values. Enter the value of the passwd parameter that you obtained in the "Prerequisites" section of this topic. In this example, 86761***21d is specified. Important Your MQTT.fx tool may display a masked password. If a password is already pasted, the pointer moves to the end of the password. In this case, you do not need to paste the password again. Make sure that the letters in parameter names and values are in the correct cases. You may modify the ${clientId} and ${SignMethod} parameters when you configure the Client ID parameter. In this case, make sure that the specified signature algorithm is the same as the value of the corresponding parameter in Client ID. Then, recalculate a password. For more information about the parameters and calculation method, see Use the Node.js script.

   3. If you use a TLS connection (securemode=2), click the SSL/TLS tab, select Enable SSL/TLS, and then set the Protocol parameter to TLSv1.2.

      Important

      If you use a TCP connection (securemode=3), use the default settings on the SSL/TLS tab, and go to the next step.



4. Click OK in the lower-right corner.

5. Click Connect.

   If the indicator on the right side turns green, the connection is established.

   To view the status of the device, perform the following steps: Log on to the IoT Platform console. Go to the instance details page of the instance to which the device belongs. In the left-side navigation pane, choose Devices > Devices. On the Device List tab, find the device and view the device status. The device is in the Online state if it is connected with IoT Platform.



In the following sections, downstream messaging and upstream messaging are tested by using custom topics and topics for TSL communication to check whether the MQTT.fx client is connected to IoT Platform. If your test results are different from the following sample results, the connection is not established. You must modify the settings based on the logs.

Use custom topics

Upstream messaging

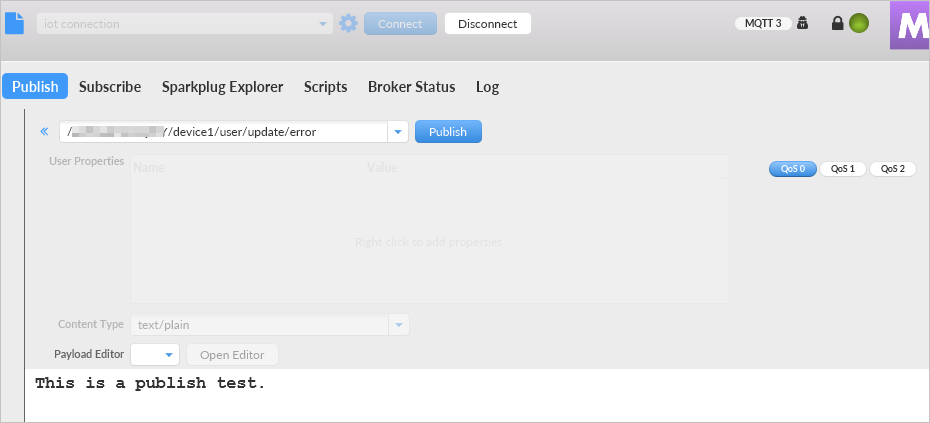

1. In MQTT.fx, click Publish. In the Publish field, enter the path of the topic that has the Publish permission: /a1***/device1/user/update/error.

2. In the editor, enter the message that you want to publish and click Publish.



3. Go to the Device Log page in the IoT Platform console and view the log whose workload type is Cloud-to-device-Message. For more information, see Query IoT Platform logs.



Downstream messaging

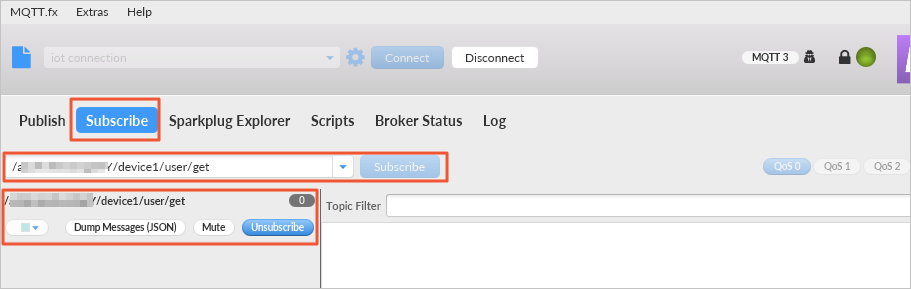

1. In MQTT.fx, click Subscribe. In the Subscribe field, enter the path of the topic that has the Subscribe permission: /a1***/device1/user/get.

2. Click Subscribe.

   If the subscription is successful, the custom topic appears on the Subscribe tab.



3. To view the status of the device, perform the following steps: Log on to the IoT Platform console. Go to the instance details page of the instance to which the device belongs. In the left-side navigation pane, choose Devices > Devices.

4. On the Device List tab, click View in the Actions column corresponding to the device. The device details page appears.

5. On the Topic List tab, find the topic and click Publish Message in the Actions column.

6. In the dialog box that appears, enter a message, such as This is a test., and click OK.

7. In the MQTT.fx tool, check whether the message is received.



Use topics for TSL communication

Submit device properties

1. In MQTT.fx, click Subscribe. In the Subscribe field, enter the path of the topic that has the Subscribe permission: /sys/a1****/device1/thing/event/property/post_reply.

2. In MQTT.fx, click Publish. In the Publish field, enter the path of the topic that has the Publish permission: /sys/a1****/device1/thing/event/property/post.

3. In the editor, enter the property data that you want to publish and click Publish.

   The property data to be published must be in the Alink JSON format. For more information, see Devices submit property data to IoT Platform. In this example, data of the LightCurrent and LightSwitch properties is published.

4. In the MQTT.fx tool, click Subscribe and view the response from IoT Platform.

   The following response is returned, which indicates that the device has successfully published the property data.

5. To view the status of the device, perform the following steps: Log on to the IoT Platform console. Go to the instance details page of the instance to which the device belongs. In the left-side navigation pane, choose Devices > Devices.

6. Click View in the Actions column to go to the Device Details page. Click the TSL Data tab, and view the data.

Set device properties

1. In MQTT.fx, click Subscribe. In the Subscribe field, enter the path of the topic that has the Subscribe permission: /sys/a1****/device1/thing/service/property/set.

2. To view the status of the device, perform the following steps: Log on to the IoT Platform console. Go to the instance details page of the instance to which the device belongs. In the left-side navigation pane, choose Maintenance > Online Debug.

3. On the page that appears, select the device you want to debug. On the Property Debugging tab, set LightSwitch to 0.

4. Click Set to send the command.

5. In the MQTT.fx tool, click the Subscribe tab and view the message received by the device.



View logs

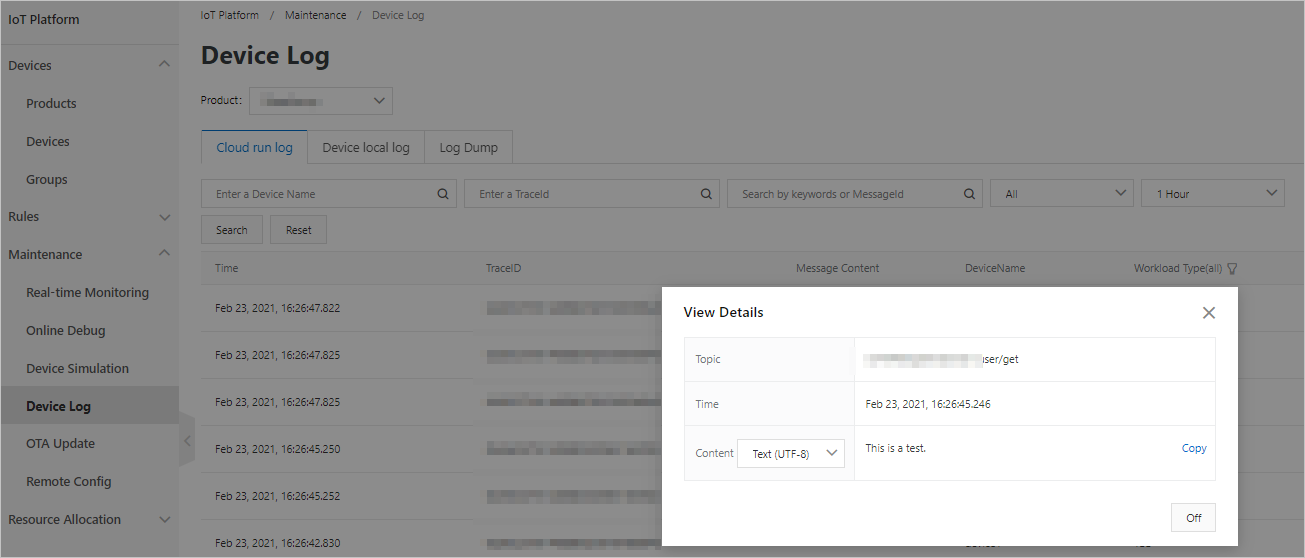

• Go to the Device Log page in the IoT Platform console and view information of the logs, such as their time, trace IDs, and workload types. For more information, see Query IoT Platform logs.

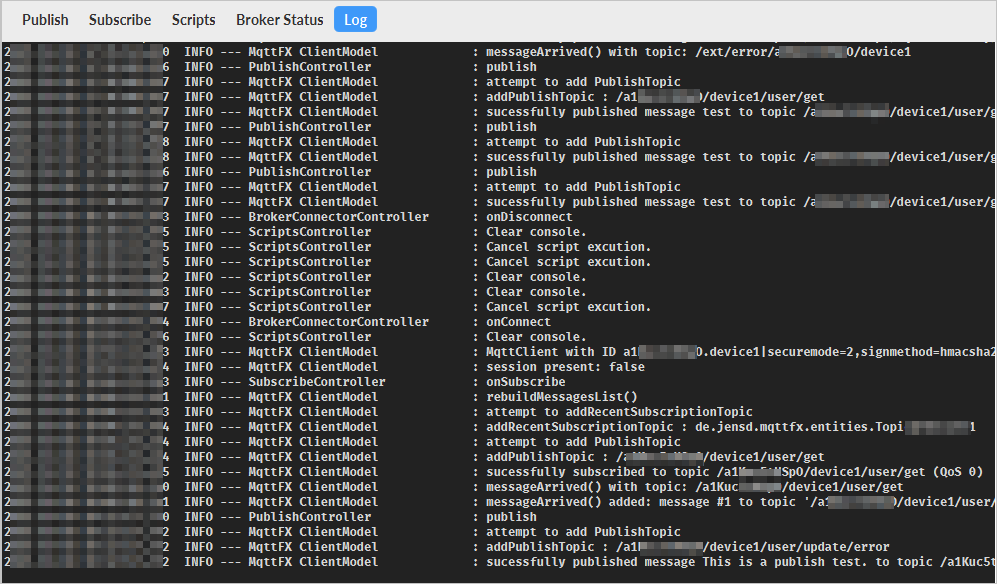

• In the MQTT.fx tool, click the Log tab. On the tab that appears, view the operation logs and error logs.
