Platform For AI:Model Hitrate Eval

The Model Hitrate Eval component of Platform for AI (PAI) uses the hit_rate_pai.py script to implement vector recall evaluation. This topic describes how to configure the Model Hitrate Eval component.

Limits

You can use the Model Hitrate Eval component based on MaxCompute resources.

Configure the component

You can use one of the following methods to configure the Model Hitrate Eval component.

Method 1: Configure the component in the PAI console

• Input ports

  Input port (from left to right)	Recommended upstream component	Parameter of PAI commands	Required
  item embedding table name	Data type: MaxCompute table Supported components: SQL Script and Read Table	Passed in as the tables parameter	Yes
  ground truth table name	Data type: MaxCompute table Supported components: SQL Script and Read Table		Yes

• Component parameters

  Tab	Parameter	Required	Description	Parameter of PAI commands	Default value
  Parameters Setting	recall_type	No	The type of the recall. Type: String. Valid values: u2i:user to item retrieval i2i:item to item retrieval	recall_type	u2i:user to item retrieval
  	top_k hitrate	No	The number of recalls. Type: String.	top_k	200
  	embedding dimension	No	The embedding dimension of the embedding table. Type: INT.	emb_dim	32
  	knn_metric	No	The measurement method of the recall similarity. Type: String. Valid values: 0: L2 distance 1: Inner Product similarity	knn_metric	0
  	use exact search:knn_strict	No	The value is of the BOOL type. Valid values: True: uses exact KNN for calculation. This increases the amount of calculation. False: does not use exact KNN for calculation.	knn_strict	True
  	batch_size	No	The number of samples calculated at the same time. Type: INT.	batch_size	1024
  	max number of interests:num_interests	No	The maximum number of interest vectors. Type: INT.	num_interests	1
  	Specify the algorithm version	Yes	Select an algorithm package that you want to run. 1. Generate an EasyRec TAR package. For more information, see Release & Upgrade in the EasyRec documentation. 2. Upload the TAR package to the OSS path. For more information, see Upload objects. 3. Select the uploaded TAR package.	script	N/A
  Tuning	ps Count	No	The number of PS nodes.	The parameters on the Tuning tab are passed in as the cluster parameter.	2
  	ps CPU	No	The number of vCPUs for each PS node. A value of 1 indicates one vCPU.		10
  	ps Memory	No	The memory size of each PS node. Unit: MB.		40000
  	Worker Count	No	The number of worker nodes.		6
  	Worker CPU	No	The number of vCPUs for each worker node. A value of 1 indicates one vCPU.		8
  	Worker Memory	No	The memory size of each worker node. Unit: MB.		40000
  	Worker GPU	No	GPUs are not required in most EasyRec trainings.		0

• Output ports

  Output port (from left to right)	Data type	Parameter of PAI commands	Required
  hit_rate_details	MaxCompute table	Passed in as the outputs parameter	Yes
  total_hit_rate	MaxCompute table		Yes

Method 2: Configure the component by using PAI commands

The following section describes the parameters. You can use SQL scripts to call PAI commands. For more information, see SQL Script.

PAI -name tensorflow1120_cpu_ext
  -project algo_public
  -Darn="acs:ram::xxx:role/aliyunodpspaidefaultrole"
  -Dbuckets="oss://examplebucket/"
  -DossHost="oss-cn-hangzhou-internal.aliyuncs.com"
  -DentryFile="easy_rec/python/tools/hit_rate_pai.py"
  -Dcluster="{\"ps\": {\"count\": 2, \"cpu\": 1000, \"memory\": 40000}, \"worker\": {\"count\": 6, \"cpu\": 800, \"gpu\": 0, \"memory\": 40000}}"
  -Dtables="odps://pai_hangzhou/tables/pai_temp_flow_vjmgur2q5ca5lz****_node_j5c8mx2h26wqxu****_outputTable/,odps://pai_hangzhou/tables/pai_temp_flow_hfd4fk1z1ba9z5****_node_msqfceossxpy7v****_outputTable/"
  -Doutputs="odps://pai_hangzhou/tables/pai_temp_flow_1y1h6j8bnl94ao****_node_74kp8xcaugwmy8****_hit_rate_details,odps://pai_hangzhou/tables/pai_temp_flow_1y1h6j8bnl94ao****_node_74kp8xcaugwmy8****_total_hit_rate"
  -DuserDefinedParameters="--recall_type=u2i --top_k=200 --emb_dim=32 --knn_metric=0 --knn_strict=True --batch_size=1024 --num_interests=1"
  -Dscript="oss://examplebucket/easy_rec_ext_0.6.1_res.tar.gz"

Examples

1. On the MaxCompute client, run the following commands to create the item embedding and ground truth tables. For information about how to use the MaxCompute client, see MaxCompute client (odpscmd).

   CREATE TABLE IF NOT EXISTS dssm_recall_item_embedding_tmp_for_eval_v1
   (
       item_id bigint
       , item_emb string COMMENT 'Item Embedding'
   );
   CREATE TABLE IF NOT EXISTS dssm_recall_vector_recall_sample_eval_sequence_v1
   (
       requestid string
       ,item_ids string
       , user_emb string COMMENT 'User Embedding'
       ,emb_num bigint
   );

2. Upload the downloaded training data (item_embedding.csv) and test data (ground.csv) to the created MaxCompute tables. For information about how to use the MaxCompute client to upload data, see Tunnel commands. You can specify the directory in which the CSV file resides or the absolute path of the CSV file when you run the Tunnel command.

   tunnel upload item_embedding.csv dssm_recall_item_embedding_tmp_for_eval_v1 -fd \t;
   tunnel upload ground.csv dssm_recall_vector_recall_sample_eval_sequence_v1 -fd \t;

3. Create a pipeline as shown in the following figure.

   Section	Description
   ①	Set the Table Name parameter of the Read Table-3 component to dssm_recall_item_embedding_tmp_for_eval_v1.
   ②	Set the Table Name parameter of the Read Table-4 component to dssm_recall_vector_recall_sample_eval_sequence_v1.
   ③	Connect the left-side input port to the Read Data Table-3 component and the right-side input port to the Read Data Table-4 component. Set the Specify the algorithm version parameter to the OSS path of the uploaded EasyRec TAR package. For more information about how to prepare a TAR package, see the "Configure the component in the PAI console " section of this topic. This example uses the 18_rec_sln_demo_dssm_recall_total_hit_rate_v1_2 component to configure the TAR file. For information about this component, see DSSM vector recall.

4. Click the icon to run the pipeline.

5. After you run the pipeline, right-click the Model Hitrate Eval component on the canvas and select View Data. You can view the following data results.

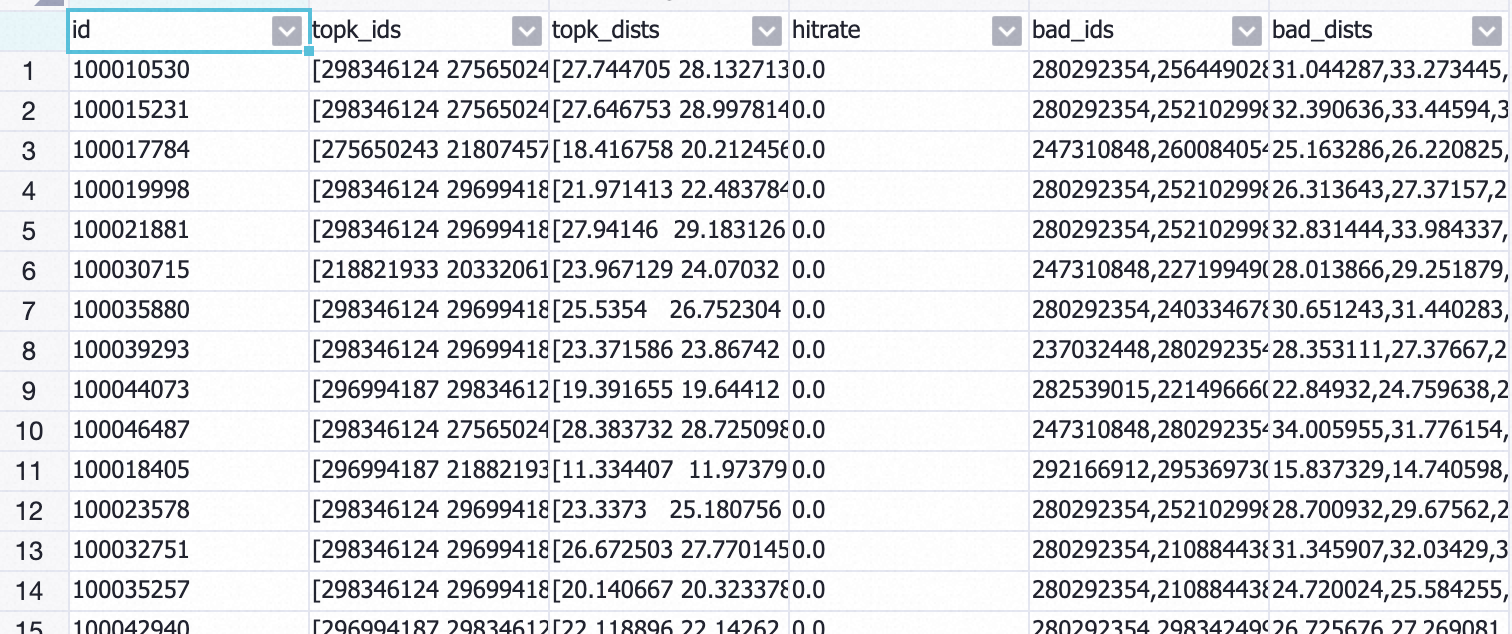

   • hit_rate_detail

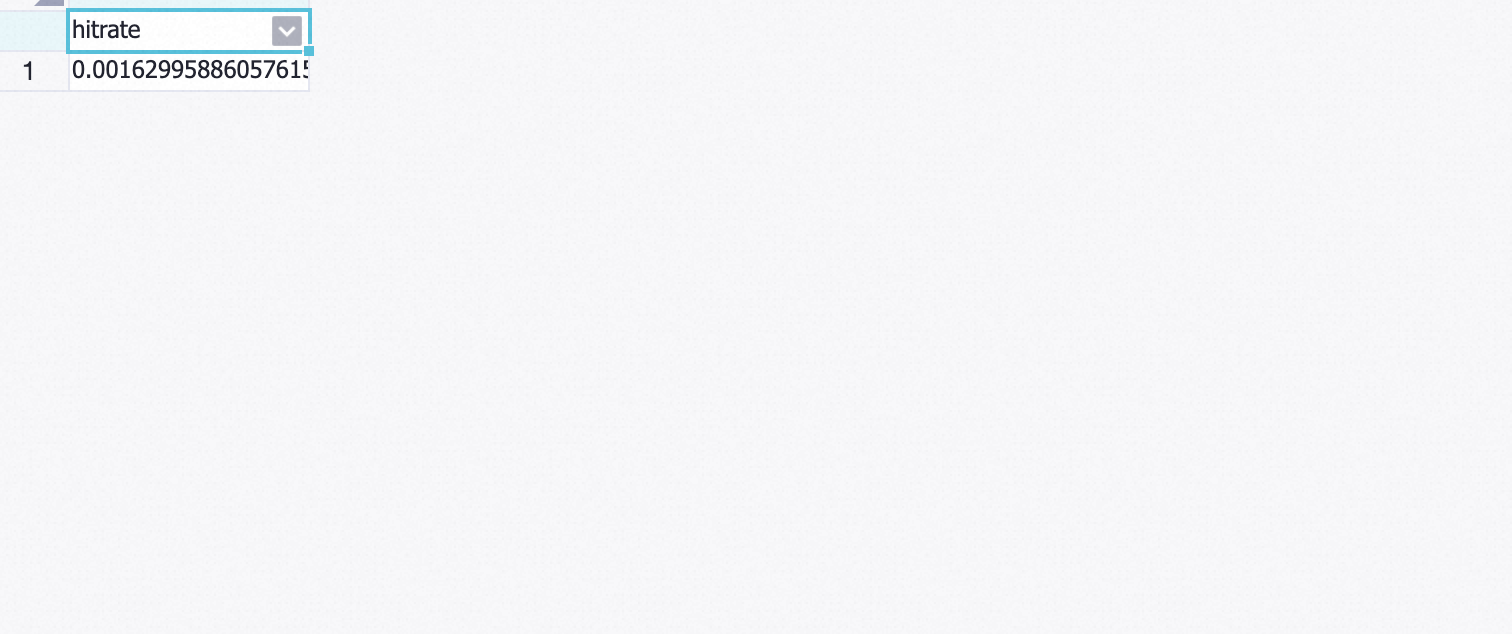

   • total_hit_rate

References

For more information, see 18_rec_sln_demo_dssm_recall_total_hit_rate_v1 in the DSSM vector recall topic.
