Elastic Compute Service:Use Workbench to connect to a Linux instance over SSH

Preparations

Before you connect to a Linux ECS instance over SSH by using Workbench, complete the following preparations:

• Check the instance status. You can connect to the ECS instance only when the instance is in the Running state.

• Complete permission-related operations for using Workbench: If permission issues occur, contact the Alibaba Cloud account owner or an administrator to grant the required permissions on Workbench. For more information, see the Service-linked role of Workbench section of the "Connect to an instance through Workbench" topic.

• Configure security groups to which the instance is assigned. Add security group rules to the security groups to allow the IP addresses related to Workbench to access the ECS instance. The security group rules vary based on the network type of the instance. For more information, see the Security group settings related to Workbench section of the "Connect to an instance through Workbench" topic.

  If no security group is specified, you can specify a security group as prompted in the Instance Login dialog box of Workbench. You can configure a security group as prompted

• Check whether Cloud Assistant Agent is installed on the instance. If you use temporary SSH key pair-based authentication to connect to the instance, you must install Cloud Assistant Agent on the instance to which you want to connect. For more information, see Install Cloud Assistant Agent.

Procedure

In this example, an ECS instance running Alibaba Cloud Linux 3 is used. By default, port 22 is used for an SSH connection to the instance. If you want to use another SSH port to connect to the instance, see the Specify the SSH port section of this topic.

By default, a Workbench session persists for 6 hours. If no operation is performed for more than 6 hours in the session, the session is closed and you must reconnect to the instance by using Workbench.

1. In the ECS console, find the instance to which you want to connect and go to the Instance Login dialog box of Workbench.

   1. Log on to the ECS console.

   2. In the left-side navigation pane, choose Instances & Images > Instances.

   3. In the top navigation bar, select the region and resource group to which the resource belongs.

   4. On the Instance page, find the Linux instance to which you want to connect and click Remote connection in the Actions column.

   5. In the Remote connection dialog box, click Sign in now in the Workbench section.

2. In the Instance Login dialog box, configure the parameters.

   1. Configure basic information about the instance.

      Note

      By default, Workbench uses the default SSH port (22) when you connect to a Linux instance. For information about how to change the SSH port, see the Specify the SSH port section of this topic.

      Parameter	Description
      Instance	The information of the current instance is automatically populated. You can also enter the IP address or the name of another instance.
      Connection	To connect to an instance that resides in a virtual private cloud (VPC), use the public or private IP address of the instance. If a public IP address is assigned to an instance in the classic network, you can use only the public IP address to connect to the instance. Otherwise, you can use the internal IP address to connect to the instance. For information about different network types, see Overview of VPC and IP addresses of ECS instances in the classic network.

   2. Select an authentication method in the Authentication field.

      The following table describes the different authentication methods.

      Authentication method	Description
      Password-based	Enter a username, such as root or ecs-user, and the logon password. If you bind an SSH key pair to the instance, we recommend that you use SSH key pair-based authentication.
      SSH Key Authentication	Enter a username, such as root or ecs-user, and enter the content of the private key in the Private Key field. If a passphrase is specified for the private key file, you must enter the passphrase in the Passphrase for Private Key field.

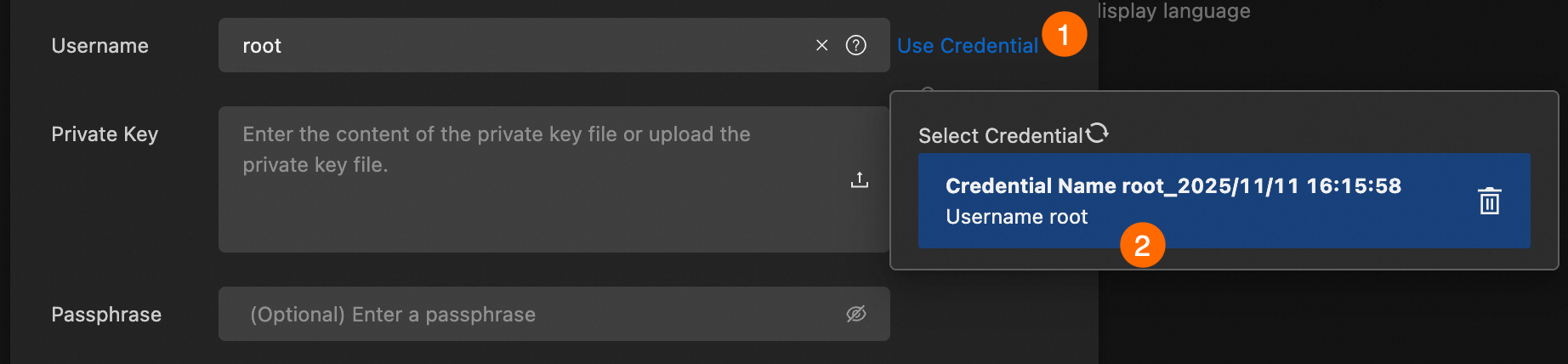

      Credential-based	Credential-based authentication allows you to save the username and password or username and key pair as credentials. If you select this authentication method, select a credential in the Credential field, without the need to enter the username, password, or key pair. For information about how to create a credential, see the Use credential-based authentication section of this topic.
      Temporary SSH Key-based	Enter a username, such as root or ecs-user. By default, the root username is used. This feature is implemented based on Cloud Assistant Agent. For more information, see the How temporary SSH key pair-based authentication works section of this topic.

3. After you specify the preceding parameters, click OK.

   The following figure shows an example of a successful connection to the instance. If an error occurs during the connection, see the FAQ section of this topic.



More features

Issues

If you cannot connect to a Linux instance, troubleshoot the issue by following the procedure described in SSH connection issues.
