Container Service for Kubernetes:Obtain the kubeconfig file of a cluster and use kubectl to connect to the cluster

Table of contents

• Introduction to kubectl and kubeconfig files

• Connection methods (Internet and private connections)

• Step 1: Install kubectl

• Step 2: Select a type of cluster credentials

• Step 3: Add cluster credentials

• Step 4: Verify the connectivity

• Generate a temporary kubeconfig file

• Revoke a kubeconfig file

• FAQ

• References

Connection methods (Internet and private connections)

You can connect to an ACK cluster over the Internet or through a private connection.

• Connect to the cluster over the Internet

  If an elastic IP address (EIP) is associated with the API server of the cluster, the API server is exposed to the Internet. In this case, the cluster has no limits on the client that you choose to access the cluster. For more information about how to enable Internet access for the API server, see Control public access to the API server of a cluster.

• Connect to the cluster through a private connection

  If you want to connect to the cluster through a private connection, your client must be deployed in the same virtual private cloud (VPC) as the cluster.

Step 1: Install kubectl

1. Determine the machine on which the kubectl client is installed and choose a method to connect to the cluster.

2. Download kubectl and install it on the machine.

   For more information, see Download and install kubectl. Kubernetes is developed based on the Linux kernel. Therefore, you must download the Linux version of kubectl and run Linux commands.

Step 2: Select a type of cluster credentials

Each ACK cluster provides two types of cluster credentials for you to connect to the cluster over the Internet or through a private connection. The cluster credentials are stored in a kubeconfig file.

1. Log on to the ACK console. In the left-side navigation pane, click Clusters.

2. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.

3. On the Cluster Information page, click the Connection Information tab. Then, select cluster credentials for connecting to the cluster over the Internet or through a private connection.

   Note

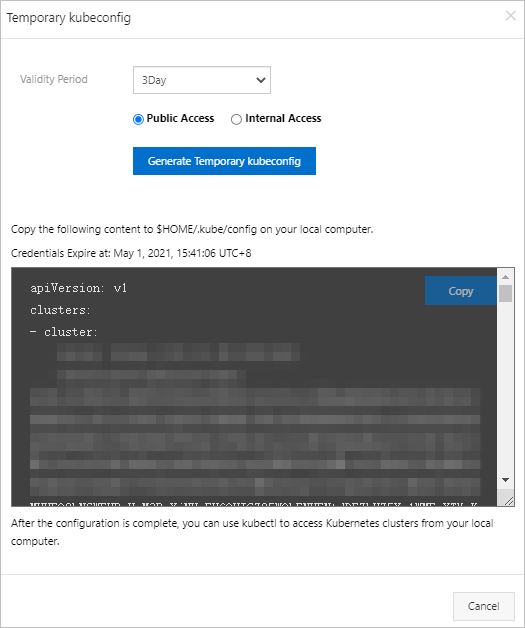

   You can also use a temporary kubeconfig file to control the validity period of the cluster credentials. This allows you to access the cluster in a more flexible manner. For more information, see Generate a temporary kubeconfig file.



Step 3: Add cluster credentials

By default, kubectl searches for the config file in the $HOME/.kube directory on the machine. The file stores the credentials that are used to access the cluster. Kubectl uses this file to connect to the cluster.

1. Select the Public Access or Internal Access tab and then click Copy.

2. Paste the credential to the config file in the $HOME/.kube directory, save the file, and then exit.

   Note

   If the .kube folder and the config file do not exist in the $HOME/ directory, you must manually create the folder and file.

   If an ACK dedicated cluster is used and you have enabled SSH logon over the Internet for the cluster, the SSH tab appears on the Connection Information tab. You can also log on to a master node by using SSH. After you add the cluster credentials to the kubeconfig file, you can use kubectl to connect to and manage the cluster. For more information about how to connect to an ACK dedicated cluster by using SSH, see Use SSH to connect to the master nodes of a dedicated Kubernetes cluster.

Step 4: Verify the connectivity

After you add the cluster credentials, run the kubectl command to verify the connectivity to the cluster. Run the following command to query the namespaces of the cluster:

kubectl get namespace

NAME              STATUS   AGE
default           Active   4h39m
kube-node-lease   Active   4h39m
kube-public       Active   4h39m
kube-system       Active   4h39m

Related operations

FAQ

Issue 1: How do I obtain the identity information of the user that is associated with the certificate used in a kubeconfig file?

grep client-certificate-data kubeconfig |awk '{print $2}' |base64 -d | openssl x509 -noout -text |grep Subject:

        Subject: O=system:users, OU=, CN=1***-1673419473

Issue 2: How do I obtain the expiration date of the certificate used in a kubeconfig file?

grep client-certificate-data  kubeconfig |awk '{print $2}' |base64 -d | openssl x509 -noout -enddate

notAfter=Jan 10 06:44:34 2026 GMT

You can use the console or API to obtain a kubeconfig file that uses a new certificate within 180 days before the expiration date of the current certificate or after the current certificate expires.

Issue 3: What do I do if the following error is prompted when I use kubectl to connect to a cluster: certificate is valid for?

When you use kubectl to access a new IP address assigned to the Server Load Balancer (SLB) instance of the Kubernetes API server in a cluster, the access failed and the Error while proxying request: x509: certificate is valid for xxx or Unable to connect to the server: x509: certificate is valid for xxx error is prompted.

• If the cluster is an ACK managed cluster, you can resolve this issue by adding the IP address to the custom subject alternative names (SANs) for the API server certificate. For more information, see Customize the SAN of the API server certificate when you create an ACK cluster.

• If the cluster is an ACK dedicated cluster, configure kubectl to ignore this issue.

  Important

  If you use the insecure-skip-tls-verify setting to ignore the issue, the client no longer verifies the certificate of the API server. We recommend that you upgrade your ACK dedicated cluster to ACK Pro, and then resolve the issue by adding the new IP address to the SANs for the API server certificate. For more information, see Hot migration from ACK dedicated clusters to ACK Pro clusters.

  • You can specify the --insecure-skip-tls-verify parameter when you run the kubectl command.

    kubectl -s https://<IP>:6443 --insecure-skip-tls-verify get ns

  • You can also add the insecure-skip-tls-verify: true setting to the kubeconfig file and delete the certificate-authority-data setting.

    apiVersion: v1
    clusters:
    - cluster:
        server: https://<IP>:6443
        insecure-skip-tls-verify: true
      name: kubernetes
    contexts:

Issue 4: Does an ACK managed cluster provide a root certificate private key which can be used to generate kubeconfig files?

ACK managed clusters do not provide root certificate private keys to external users. You can generate a kubeconfig file only in the ACK console or by calling the ACK API.

References

• You can call the DescribeClusterUserKubeconfig operation to query the kubeconfig file of an ACK cluster. For more information, see DescribeClusterUserKubeconfig.

• You can revoke or delete a kubeconfig file to prevent security risks caused by credential leaks. For more information, see Overview of kubeconfig file management.
